Features

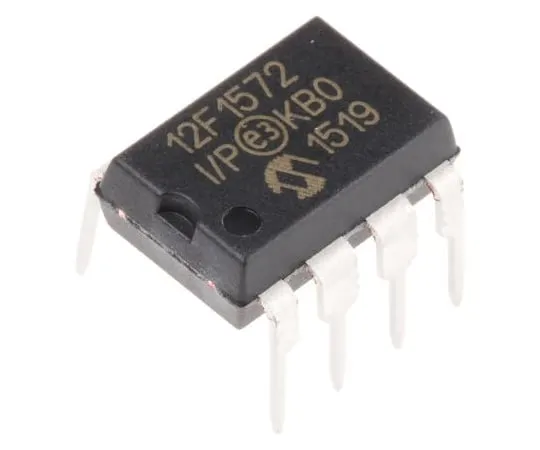

• PIC12F1571/1572 8-Bit Flash Microcontrollers. Microchip s PIC12 Microcontrollers (MCUs) were the world s first 8-Pin microcontrollers. Originally launched as One Time Programmable (OTP) parts, this range of devices continues to expand as extra features and further improvements are added. The PIC12F1571/1572 family of microcontrollers is based upon Microchip s enhanced mid-range core that features a deep hardware stack and 49 instructions. These MCUs provide up to 8 MIPS, up to 3.5 Kbytes program memory and data memory of up to 256 bytes. On board is a configurable RC oscillator with ±1% accuracy. Features. 49 Instructions 16 Level Hardware Stack 16 MHz Internal Oscillator – Selectable Output Range from 16 MHz to 31 kHz 6 I/O Pins 3 Standalone PWM Modules 4 Channel 10-bit Analogue to Digital Converter (ADC) 5-bit Digital to Analogue Converter (DAC) Two 8-bit Timers (TMR0/TMR2) One 16-bit Timer (TMR1) Configurable Logic Cell (CLC) Numerically Controlled Oscillator (NCO) Complementary Waveform Generator (CWG) In Circuit Serial Programming (ICSP)
