Features

• EN132400
• Although it is designed to be connected directly to the power distribution system, it cannot be ***d in places where electrical shock may occur due to capacitor failure.
• ENEC, UL, cUL, CQC

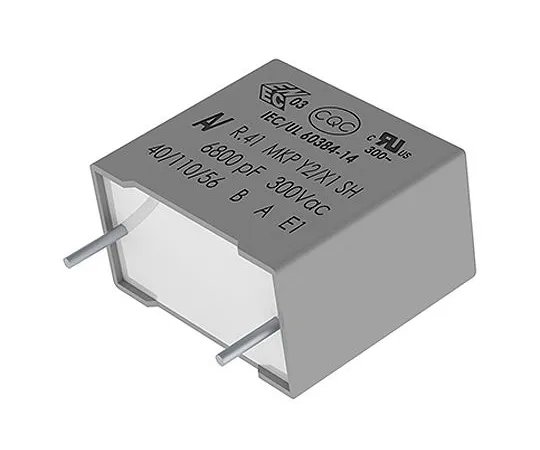

• KEMET R41 Series
• KEMET R41 Series is a metalized polypropylene film capacitor with self-recovery characteristics. This polypropylene capacitor is ***d as an interference suppressor for direct insertion applications and is suitable for *** in areas where there is a risk of electric shock if the capacitor fails.
• Features Rated voltage: 300 V ac (50/60 Hz) Capacitance range: 0.001 → 1 μF Lead spacing: 10 → 37.5 mm Capacity tolerance: ± 20%, ± 10% Weatherproof category: 40/110/56 IEC600681 Tape and reel complies with IEC602862 Operating temperature range: -40 → +110 C 100% Screening factory test @ 5,000 V dc/2,500 V ac Self-recovery characteristics Available in automotive (AECQ200) grade with a maximum lead spacing of 22.5 mm Application: Can be ***d as an electromagnetic interference (EMI) suppression filter for "line-ground" or "direct insertion" applications where a safety classification of Y2/X1 is required.
