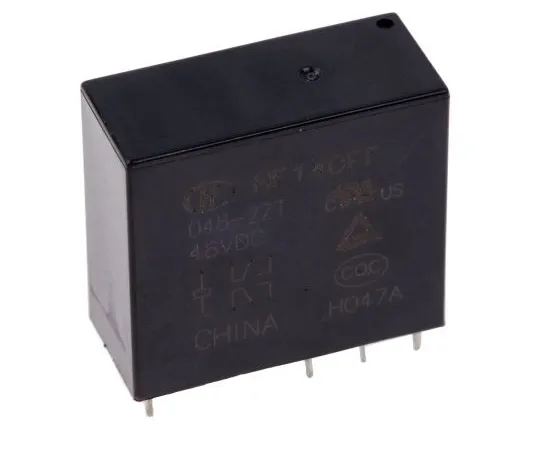

63-5113-99 RS PRO DPDT Non-Latching Relay PCB Mount, 48V dc Coil, 10A 800-4491
Product Description
Product Model: 63-5113-99Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5113-99
Product Brand: RS PRO
Features
- UL (File no. E134517), TUV (File no. R50055991), CQC (File no. CQC02001001951). Miniature Intermediate Power Relays. Contacts: 2 Form C, DPDT 5 mm pinning 5 kV dielectric strength (between coil and contacts) Surge voltage up to 10 kV (between coil and contacts)
Spec
- Quantity：1piece
- Coil Voltage : 48V dc
- Coil Power : 530mW
- Coil Resistance : 4.17 kΩ
- Isolation Coil To Contact : 5kV ac
- Contact Configuration : DPDT
- Mounting Type : PCB Mount
- Switching Current : 10A
- Terminal Type : Through Hole
- Number of Poles : 2
- Maximum Switching Voltage AC : 250V ac
- Maximum Switching Voltage DC : 30V dc
- Standards Met : CQC, CULus, RoHS Compliant
- CODE No.:800-4491
