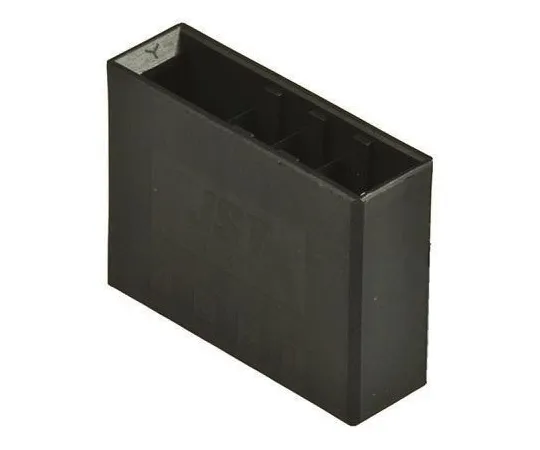

63-4991-94 JST JFA J300, 4 Way, 1 Row, Straight PCB Header B04B-F32SK-GGXR
Electronic/Electrical Parts and Controll Equipments

63-4991-94 JST JFA J300, 4 Way, 1 Row, Straight PCB Header B04B-F32SK-GGXR

model: 63-4991-94
brand: JST

Product Description

Product Model: 63-4991-94Product Brand: JST Features UL […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4991-94
Product Brand: JST

Features

  • UL 94V-0. J300 Series/J320 Headers. These J300 Series/J320 5.08mm pitch PCB headers mate with J-FAT spring terminal connectors, stock number ; 707-8984 707-8984 typical. The JST J300/J320 series Connectors are available in both wire-to-board and wire-to-wire connection. The J300 Connectors feature a double-spring construction consisting of the main spring and a contact pressure adjustment spring. Features ; Benefits. Double spring construction. Housing lances. Secure locking method. Both contact and application tools have identification marks to prevent incorrect combinations. Polarization is achieved by selecting corresponding Key Codes X or Y as shown in the manufacturers part number (e.g. ****-***** -**Y * ) Wire sizes are 14-28 AWG

Spec

  • Quantity:1piece
  • Series : JFA J300
  • Pitch : 5.08mm
  • Number of Contacts : 4
  • Number of Rows : 1
  • Body Orientation : Straight
  • Shrouded/Unshrouded : Shrouded
  • Mounting Type : Through Hole
  • Termination Method : Solder
  • Contact Plating : Gold
  • Voltage Rating : 600 V ac
  • CODE No.:707-9062
