Electronic/Electrical Parts and Controll Equipments

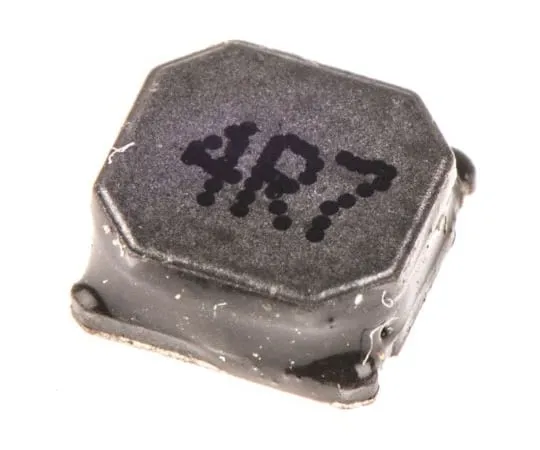

63-5088-42 Bourns SRN4018 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 4.7 μH ±20% Wire-Wound 1.9A rms Idc SRN4018-4R7M
Product Description
Product Model: 63-5088-42Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5088-42
Product Brand: Bourns
Features
- AEC-Q200 qualified. SRN4018 Series Semi Magnetically Shielded Wire Wound Chokes. Bourns SRN4018TA series semi-shielded power inductors are primarily designed for automotive electronics applications and is AEC-Q200 qualified but they can also be ***d on other applications where high inductor reliability is required. These inductors provide effective magnetic shielding with lower radiation compared to unshielded inductors.1 to 150 μH inductance range. Up to 3.2A rated current. Applications. Automotive systems (driver assistant, Infotainment, lighting) Power supplies DC-DC converters Digital video cameras Smartphones Televisions, LCD displays
Spec
- Quantity：1bag(10pieces)
- Inductance : 4.7 μH
- Maximum DC Current : 1.9A rms
- Length : 4mm
- Depth : 4mm
- Height : 1.8mm
- Dimensions : 4 x 4 x 1.8mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 84mΩ
- Series : SRN4018
- Core Material : Ferrite
- Minimum Operating Temperature : -25°C
- CODE No.:772-9714
