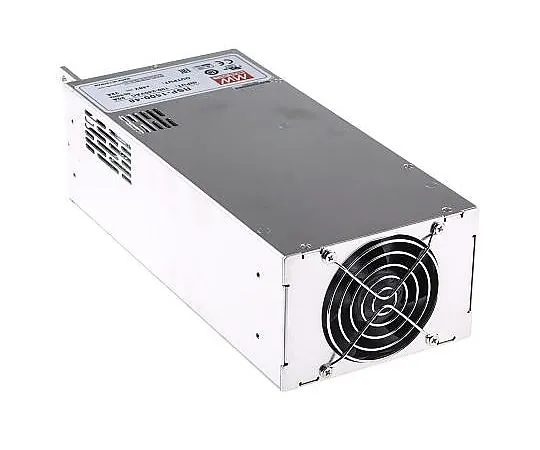

63-4913-45 Mean Well 1.5kW 1 Output Embedded Switch Mode Power Supply SMPS, 32A, 48V dc Enclosed RSP-1500-48
Product Description
Product Model: 63-4913-45Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4913-45
Product Brand: Mean Well
Features
- EN 60950, UL 60950. UL recognised, TUV, CB. Derate output 2% per °C above 45°C (12V), 50°C (24, 27, 48V). Depth excludes terminal block. 3. RSP-1500 Series Universal Input, Single Output. High efficiency, long life and high reliability Built-in fan Remote sense Remote ON-OFF control Alarm signal output current sharing up to 6000W (3+1) LED indicator for power on Easy installation - input screw terminals, output 2xM8 bolts (supplied) Adjustable output voltage (±10%) Power factor correction to EN 61000-3-2 EMC meets EN 55022 Short circuit, over-load, over-voltage and over-temperature protection
Spec
- Quantity：1piece
- Output Voltage : 48V dc
- Output Current : 32A
- Power Rating : 1.5kW
- Number of Outputs : 1
- Input Voltage : 127 → 370 V dc, 90 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Enclosed
- Length : 278mm
- Width : 127mm
- Depth : 83.5mm
- Weight : 3kg
- Efficiency : 91%
- Maximum Temperature : +70°C
- Minimum Temperature : -20°C
- CODE No.:644-8206
