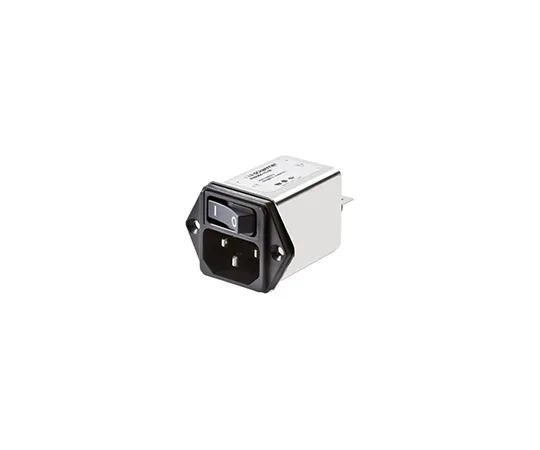

63-5081-27 Schaffner FN9264 Series 10A 250 V ac 50 → 400Hz Flange Mount EMI Filter, with Tab Terminals FN9264-10-06
Product Description
Product Model: 63-5081-27Product Brand: Schaffner Featu […]
Contact Us
Product Details
Product Model: 63-5081-27
Product Brand: Schaffner
Features
- FN9264 - Switched IEC Filter. The FN9264 IEC inlet filter combines an IEC inlet and mains filter with excellent filter attenuation in a small form factor. A wide election of amperage ratings, mounting possibilities and filters for medical applications are designed to offer various solution. Compact size Rated currents up to 10A Complies with IEC/EN 60601 High quality 2 pole rocker switch Good attenuation performance Faston terminals for easy assembly
Spec
- Quantity：1piece
- Maximum Current Rating : 10A
- Maximum Voltage Rating : 250 V ac
- Mounting Type : Flange Mount
- Termination Style : Tab
- Series : FN9264
- Operating Frequency : 50 → 400Hz
- Length : 51.45mm
- Depth : 46mm
- Height : 35mm
- Inductance : 210 μH
- Minimum Operating Temperature : -25°C
- Maximum Operating Temperature : +85°C
- Resistance : 1MΩ
- CODE No.:766-2699
