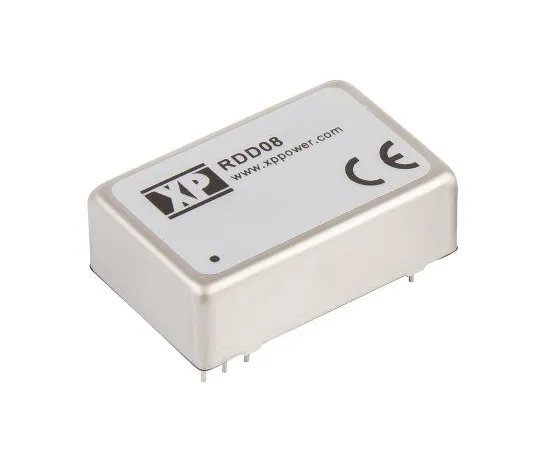

63-6835-26 Insulation DC-DC Converter Vout: 12 V dc 13 to 70 V dc 8 W 24 V dc RDD0824S12
Product Description
Product Model: 63-6835-26Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6835-26
Product Brand: XP Power
Features
- XP Power-RDD Series DC-DC Converters The XP Power RDD series is a highly reliable 8W single/dual output DC-DC converter. Designed with industry-standard footprint DIP24 plastic packaging, it features a wide input range for railway applications. All of these high-efficiency DC-DC converters are EN50155 certified for rail applications.
- 8 W DIP24 Plastic Package Operating temperature: -40 → +85 °C Full load 3000 V at ambient temperature 70°C dc Wide input range for insulated railway applications EN50155 Certified for railway applications EN50121-3-2 EMC
Spec
- Quantity: 1 piece
- Output Voltage: 12 V dc
- Input voltage range: 13 to 70 V dc
- Input voltage nominal: 24 V dc
- insulation Voltage: 3 (Minimum) kV dc
- Rating Power: 8W
- Output current: 665 mA
- Mounting type: through hole
- Number of outputs: 1
- Medical standards certification: None
- Approved for rail ***: Yes
- Package: DIP 24
- Road regulation: ± 0.5%
- Maximum temperature: + 85 degrees C
- Series: RDD
- RoHS compliance status: Compliance
- Securities Code: 122 -4601
