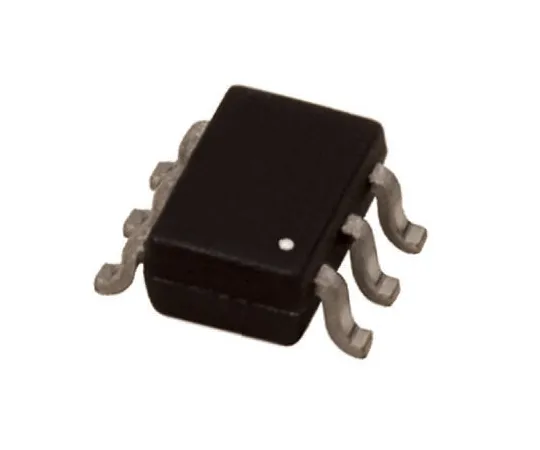

63-5071-04 FDC6305N Dual N-Channel MOSFET, 2.7 A, 20 V PowerTrench, 6-Pin SOT-23 ON Semiconductor FDC6305N
model:
63-5071-04
brand:
ON Semiconductor
Product Description
Product Model: 63-5071-04Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5071-04
Product Brand: ON Semiconductor
Features
- PowerTrench® Dual N-Channel MOSFET, Fairchild Semiconductor. ON Semis PowerTrench® MOSFETS are optimised power switched that offer increased system efficiency and power density. They combine small gate charge, small reverse recovery and a soft reverse recovery body diode to contribute to fast switching of synchronous rectification in AC/DC power supplies. The soft body diode performance of the PowerTrench® MOSFETs is able to eliminate snubber circuit or replace a higher voltage rating MOSFET.
Spec
- Quantity：1bag(10pieces)
- Channel Type : N
- Maximum Continuous Drain Current : 2.7 A
- Maximum Drain Source Voltage : 20 V
- Maximum Drain Source Resistance : 128 mΩ
- Minimum Gate Threshold Voltage : 0.4V
- Maximum Gate Source Voltage : -8 V, +8 V
- Package Type : SOT-23
- Mounting Type : Surface Mount
- Pin Count : 6
- Channel Mode : Enhancement
- Maximum Power Dissipation : 960 mW
- Typical Gate Charge @ Vgs : 3.5 nC @ 4.5 V
- CODE No.:761-3947
