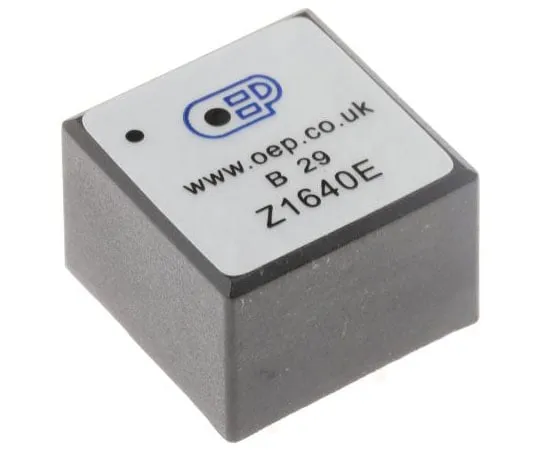

63-7614-94 1:1 Through Hole Telecom Transformer, 1.9h, 32Ω Z1640E
Product Description
Product Model: 63-7614-94Product Brand: OEP Features BS […]
Contact Us
Product Details
Product Model: 63-7614-94
Product Brand: OEP
Features
- BS415; EN60950; EN41003. BABT. Stock no. ; 210-6273 210-6273 is a surface mount device. OEP, Line Isolating Transformers. From OEP, this selection of compact encapsulated PCB and surface mount line isolating transformers are for *** in data transmission applications. They are approved and certified for *** in telecommunications circuits required to meet BS6305 (Speech and Non-Speech Class A) providing the line hold current is diverted from the windings by a choke or other electronic means. Constructed from resin encapsulated in a glass filled nylon box, these line isolating transformers are flame retardant to UL94-V0 requirements.
Spec
- Quantity:1piece
- Primary Inductance : 1.9H
- Primary DC Resistance : 32Ω
- Secondary DC Resistance : 42Ω
- Insertion Loss : 1.1dB
- Turns Ratio : 1:1
- Mounting Type : Through Hole
- Leakage Inductance : 1.6mH
- Dimensions : 18 x 14.5 x 18mm
- Depth : 18mm
- Length : 18mm
- Width : 14.5mm
- Maximum Operating Frequency : 4kHz
- Minimum Operating Frequency : 200Hz
- CODE No.:533-0176
