Features

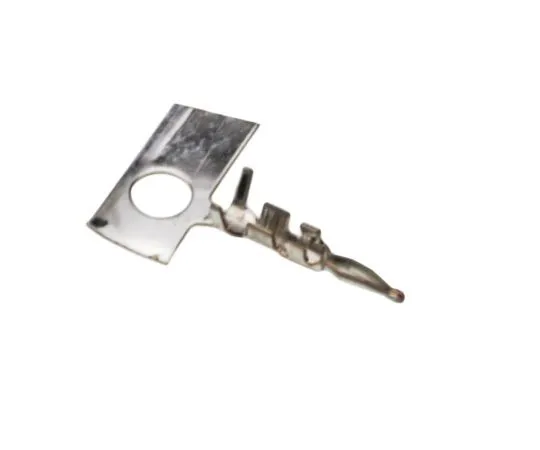

• For 1.5mm SZN Board-In Connector Housings see stock number ; 752-1826 752-1826 typical. 1.5mm Board-In SZN Contacts. These JST Wire to Board Crimp style Connectors are a Board-In type. The 1.5mm pitch SZN series provide high-density mounting in an efficient and economical manner. The solder tails are designed to give these 1.5mm pitch Board In SZN Connectors easy insertion and secure locking into the PCB. These Board-In 1.5mm pitch SZN Contacts have split solder tails to increase elasticity for improved board retention. The Contact for these 1.5mm pitch SZN Board In connectors is for *** with 0.6 to 1.2mm thick PCBs. For SZN Contact stock number ; 752-1822 752-1822 the applicable wire is 0.05-0.08 mm² 30-28 AWG. For SZN Contact stock number ; 752-1829 752-1829 the applicable wire size is 0.08-0.13 mm² 28-26 AWG.
