Electronic/Electrical Parts and Controll Equipments

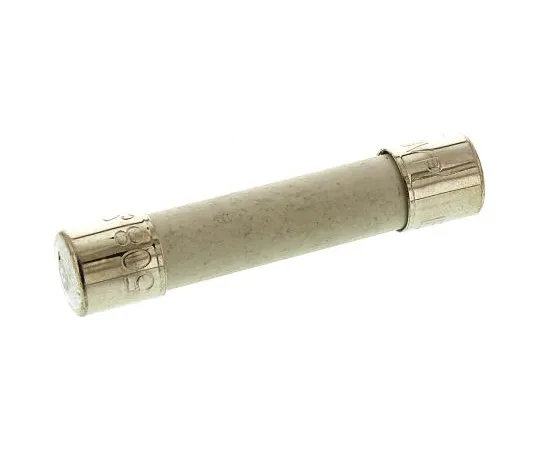

63-5101-41 Littelf***, 315mA Ceramic Cartridge F***, 6.3 x 32mm, Speed F 0508.315MXP
Product Description
Product Model: 63-5101-41Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5101-41
Product Brand: Littelfuse
Features
- Littelf*** 508 Series. Littelf*** 508 series 3AB f***s feature remarkable interrupting rating designed for high-energy 1000V AC/DC protection in the multimeter market and similar applications.
Spec
- Quantity：1piece
- Current Rating : 315mA
- F*** Size : 6.3 x 32mm
- Voltage Rating : 1kV
- Overall Length : 31.75mm
- Diameter : 6.35mm
- Body Material : Ceramic
- High Rupture Capacity : Yes
- Breaking Capacity at Maximum Voltage Rating : 10 kA @ 1000 V ac/dc
- Size Designation : 3AG
- Series : 508
- CODE No.:787-4362
