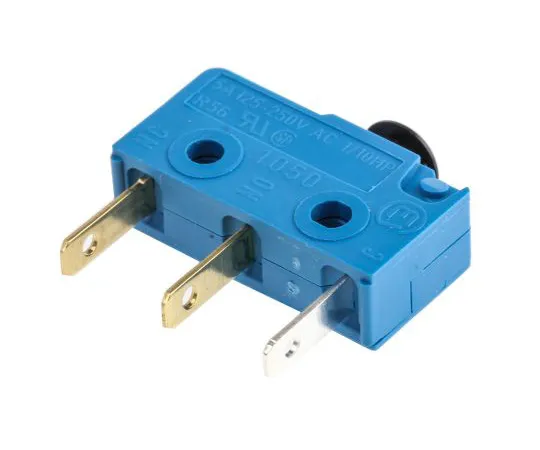

63-5045-40 SPDT Mushroom Shaped Microswitch, 5 A @ 250 V ac 1050.1202
Product Description
Product Model: 63-5045-40Product Brand: Marquardt Featu […]
Contact Us
Product Details
Product Model: 63-5045-40
Product Brand: Marquardt
Features
- UL; CSA; ENEC. The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings. Marquardt Subminiature Snap Action Switches - 1050 Series. Marquardt 1050 Series snap action single pole switches. The 1050 Series snap action switches are a sub-miniature switch with a body width of 6.4mm, designed to DIN41635B with a contact resistance of ;100mΩ and an insulation resistance of >100MΩ. The Marquardt 1050 Series is available with various actuators and terminations. Contact distance ;3mm Bounce time ;5ms UL 94 V-2 flammability
Spec
- Quantity：1piece
- Actuator Type : Mushroom Shaped
- Terminal Type : Tab
- Contact Current Rating : 5 A @ 250 V ac
- Contact Configuration : SPDT
- IP Rating : IP00, IP40
- Operating Force : 1.5 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Switch Housing : V2 Housing
- Contact Material : Silver
- Case Material : PBTP
- Mechanical Life : 10000000Cycles
- Release Force : 0.5N
- Operating Temperature Range : -40 → +100°C
- CODE No.:741-0735
