Electronic/Electrical Parts and Controll Equipments

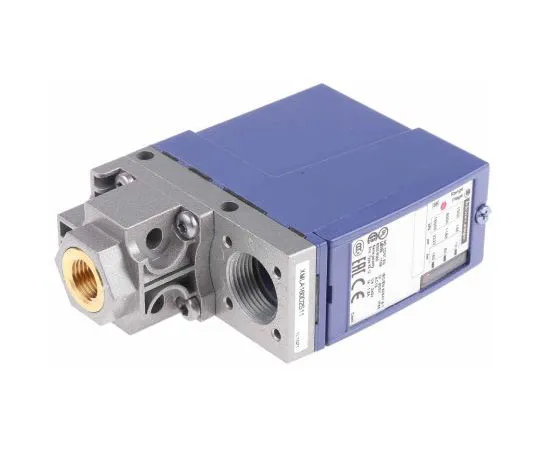

63-7490-33 Telemecanique Sensors Differential for Hydraulic Fluid Pressure Sensor, 160bar Max Pressure Reading , 120 → 240 XMLA160D2S11
model:
63-7490-33
brand:
Telemecanique Sensors
Product Description
Product Model: 63-7490-33Product Brand: Telemecanique S […]
Contact Us
Product Details
Product Model: 63-7490-33
Product Brand: Telemecanique Sensors
Features
- Pressure quoted is 'per cycle' and (occasional). OsiSense XMLA Pressure Switches. Schneider Electric XMLA pressure switches for control circuits are ***d to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold. Fixed differential External pressure setting window available 1 NO ; 1 NC snap acting contacts Temperature range: –25 to +70 °C Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston Media connection: 1/4" NPT Conduit connection: 1/2" NPT
Spec
- Quantity:1piece
- Pressure Reading Type : Differential
- Minimum Pressure Reading : 10bar
- Maximum Pressure Reading : 160bar
- Accuracy : 2 %
- Output Type : Relay
- Media Measured : Hydraulic Fluid
- Process Connection : G1/4
- Electrical Connection : PG13.5 Cable Gland
- Maximum Current : 3 A ac, 100 mA dc
- Supply Voltage : 120 → 240 V ac, 250 V dc
- Housing Material : Zinc Alloy
- IP Rating : IP66
- Maximum Operating Temperature : +70°C
- CODE No.:324-0964
