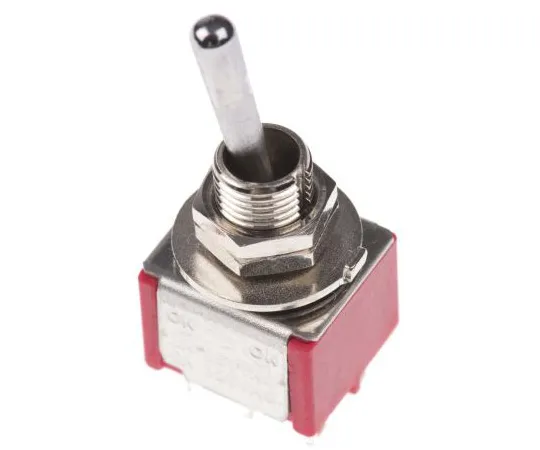

63-5035-64 RS PRO Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount 734-7016
Product Description
Product Model: 63-5035-64Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5035-64
Product Brand: RS PRO
Features
- Toggle Switches, Miniature - RS Series. RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : Latching
- Contact Current Rating : 5 A @ 250 V ac
- Mounting Type : Panel Mount
- Terminal Type : Solder
- Panel Cut Out Diameter : 6.35mm
- Actuator Length : 10.41mm
- Actuator Material : Chromium Plated Brass
- Contact Resistance : 10mΩ
- Mechanical Life : 40000Cycles
- CODE No.:734-7016
