Features

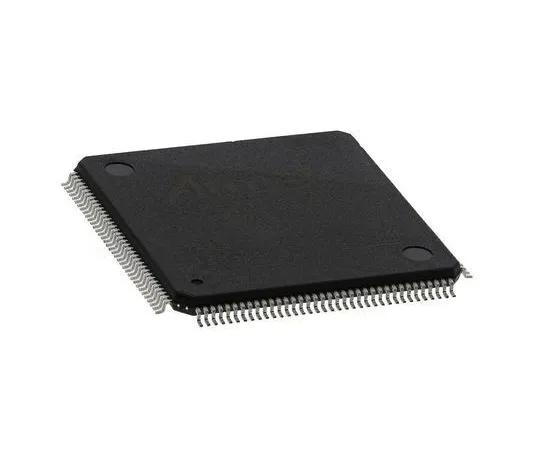

• RX64M Microcontrollers
• The 32 bit microcontrollers in the RX64M family operate at a high speed of 120 MHz, have a large on-chip memory capacity, and are capable of Ethernet communication.
• 120 MHz 32 bit RXv2 Core Microcontroller Up to 4MB Flash Memory 64KB Data Flash Memory 552 KB RAM (512 KB ECC, 32 KB non-ECC, 8 KB standby) 32 bit Multiplier/Divider Single Precision IEEE 754 Floating Point Arithmetic Unit Memory Protection Unit Data Encryption Module (AES, DES, SHA, RNG) 4 Channel DMA Controller Data Transfer Controller Serial Communication: SPI, QSPI, I2C, USB, SD Host, MMC Host, CAN, Ethernet Serial Sound Interface Programmable Pulse Generator 4 Channel PWM Timer Real-Time Clock 14 bit Indep***ent Watchdog Timer CRC Computer Data Arithmetic Circuit Clock Frequency Precision Measurement Circuit Temperature Sensor On-Chip Debug and Trace Power: +2.7 → +3.6 V dc (+ 3.0 → +3.6 V when using USB) Low Power Mode: Sleep, All Modules Clock Stop, Software Standby, Deep Software Standby
