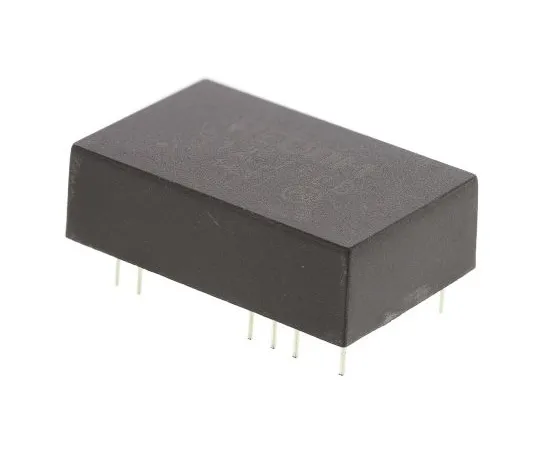

63-5034-54 Recom 5W Isolated DC-DC Converter Through Hole, Voltage in 10 → 14 V dc, Voltage out 95 → 210V dc R12-150B
Electronic/Electrical Parts and Controll Equipments

63-5034-54 Recom 5W Isolated DC-DC Converter Through Hole, Voltage in 10 → 14 V dc, Voltage out 95 → 210V dc R12-150B

model: 63-5034-54
brand: Recom

Product Description

Product Model: 63-5034-54Product Brand: Recom Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5034-54
Product Brand: Recom

Features

  • MTBF to MIL-HDBK 217F (25°C) Derate output when when operating temperature is above 70°C. 3. Recom 1 to 5W DIP Single Output Regulated Isolated DC-DC Converter - Rxx-B Series. 5W single output regulated DIP 24 DC to DC converters with an adjustable output voltage range of up to 210 Vdc. These regulated DIP 24 DC to DC converters can be cascaded for output voltages of up to 420Vdc. Regulated output Adjustable output voltage of up to 210 Vdc Cascadeable for output voltages up to 420 Vdc Remote voltage programming by external voltage or resistance 3kVdc input/output isolation Continuous short circuit protectio and automatic restart

Spec

  • Quantity:1piece
  • Output Voltage : 95 → 210V dc
  • Input Voltage Range : 10 → 14 V dc
  • Input Voltage Nominal : 12 V dc
  • Isolation Voltage : 3000V dc
  • Power Rating : 5W
  • Output Current : 50mA
  • Mounting Type : Through Hole
  • Number of Outputs : 1
  • Efficiency : 82%
  • Package : DIP 24
  • Load Regulation : ±0.5%
  • Maximum Temperature : +70°C
  • Depth : 9.4mm
  • CODE No.:733-1118
