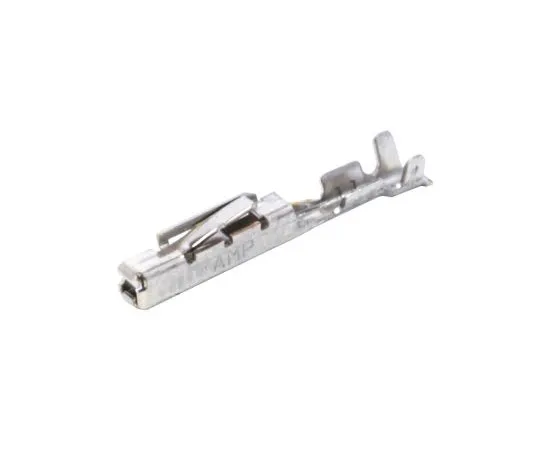

63-5014-86 TE Connectivity Dynamic 2000 Female Crimp Terminal Contact 24AWG 1318106-1 1318106-1
Electronic/Electrical Parts and Controll Equipments

63-5014-86 TE Connectivity Dynamic 2000 Female Crimp Terminal Contact 24AWG 1318106-1 1318106-1

model: 63-5014-86
brand: TE Connectivity

Product Description

Product Model: 63-5014-86Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5014-86
Product Brand: TE Connectivity

Features

  • TE Connectivity DYNAMIC D-2000 Series Crimp Contacts. DYNAMIC D-2000 series tab and receptacle contacts for use in DYNAMIC D-2100 series connector housings. When the contact is inserted into the housing a lance inside the housing secures it into place and produces an audible click to confirm secure locking. The contact can also be easily removed using the correct tooling. These DYNAMIC D-2000 series contacts have a twist resistant box type construction with 3 points of contact for increased electrical reliability. A long contact wiping length provides the high electrical reliability needed when used in industrial machinery. Features and Benefits. Twist resistant box style design 3 point contact design for electrical reliability Long contact wiping length. Product Application Information. DYNAMIC D-2100 connectors are suitable for use in most industrial signal applications.

Spec

  • Quantity:1bag(25pieces)
  • Gender : Female
  • For Use With : Dynamic 2000 Connector Housing
  • Series : Dynamic 2000
  • Minimum Wire Size mm² : 0.09mm²
  • Termination Method : Crimp
  • Contact Plating : Gold
  • Maximum Wire Size AWG : 24AWG
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +105°C
  • CODE No.:719-0412
