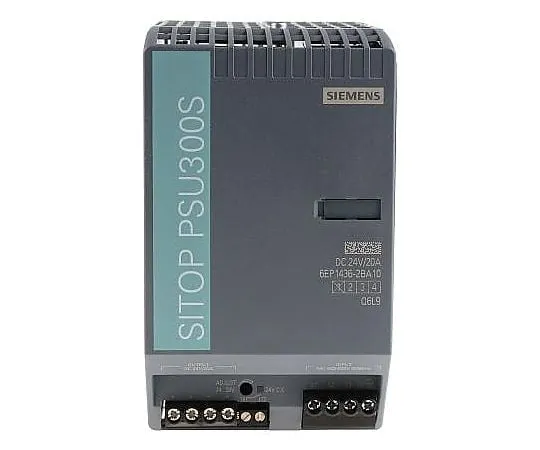

63-5004-60 Siemens, SITOP PSU300S DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A output current 6EP1436-2BA10
Electronic/Electrical Parts and Controll Equipments

63-5004-60 Siemens, SITOP PSU300S DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 20A output current 6EP1436-2BA10

model: 63-5004-60
brand: Siemens

Product Description

Product Model: 63-5004-60Product Brand: Siemens Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5004-60
Product Brand: Siemens

Features

  • cULus cCSAus ATEX IECEx GL. SITOP Smart Power Supply Unit. The 1 and 3 phase SITOP smart is the universal and powerful standard power supply for machinery and plant engineering. Despite their compact design, they offer an excellent overload response. Thanks to a power boost of 150%, loads with high power consumption can be connected without any problems. The permanent overload capability of 120% offers power reserves in-case of expansions. The high degree of efficiency results in low energy consumption and minimal heat generation inside the control cabinet. To increase the 24 V availability, the SITOP smart power supply can be combined with buffer, DC UPS, redundancy and selectivity modules. Features and Benefits. Compact design. Extra power with 1.5 times the rated current for brief functional overload. Permanent overload capability with 1.2 times the rated current up to 45°C (24 V versions). High degree of efficiency up to 91.5%. Adjustable output voltage for compensating voltage drops. Signalling contact for easy integration in the plant monitoring system. Wide temperature range from -25°C or -10°C to 70°C. Product Application Information. SITOP power supplies can be combined with buffer modules, uninterrupted power supplies, redundancy modules and selectivity modules. Why *** a DIN Rail power supply?. The flexibility of DIN Rail mounting systems enables quicker installation time as all devices are able to simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed. DIN Rail AC to DC power supplies are widely ***d in many automation, instrumentation and industrial applications. They are ***d to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more. Points to consider when buying a DIN Rail power supply. DIN Rail size – There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail. Protection types – It is important to choose a power supply that is protected against either short circuit, overload, over temperature or over voltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared. Fixed or adjustable output voltage or current – In test systems it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential. Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross sectional area to **** minimise noise and heat. Efficiency – Choose a power supply that has an efficiency over 89% to minimise the amount of power dissipation, especially if the system relies on convection cooling. Input voltage range – If the DIN Rail power supply you are buying is to be ***d in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required. Standards – If the power supply is to be ***d in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

Spec

  • Quantity:1piece
  • Input Voltage : 400 → 500V ac
  • Output Voltage : 24V dc
  • Output Current : 20A
  • Power Rating : 480W
  • Number of Outputs : 1
  • Electrical Phase : 3
  • Type : Switch Mode
  • Height : 145mm
  • Width : 90mm
  • Series : SITOP PSU300S
  • CODE No.:714-1271
