Features

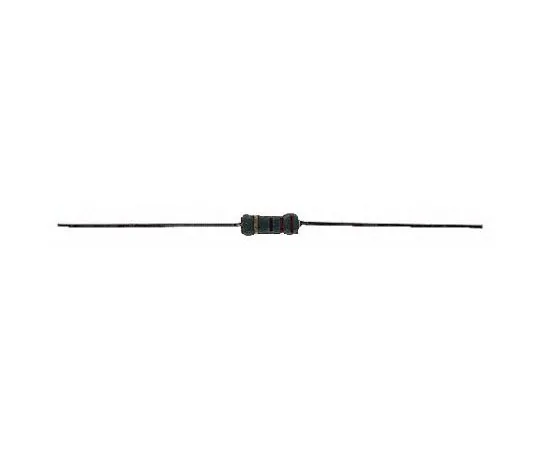

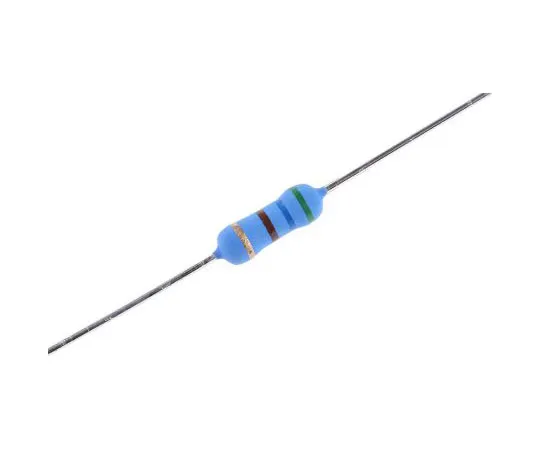

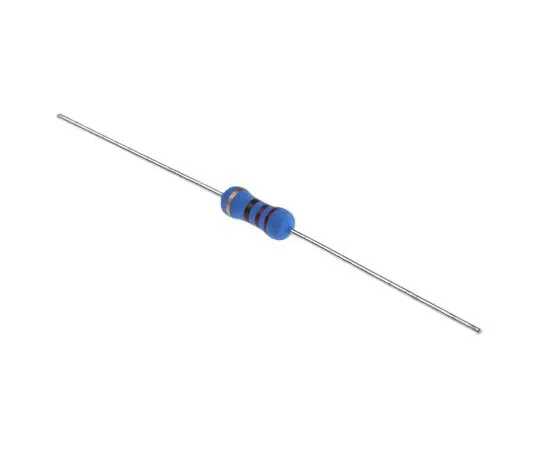

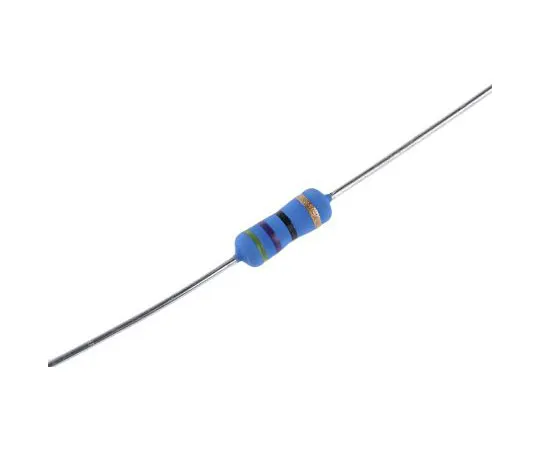

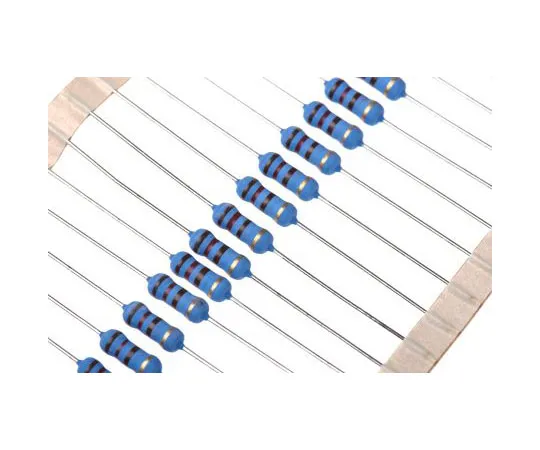

• 1W Power Metal Oxide Film Resistors, ROX1S Series, Axial. From TE Connectivity, the ROX1S Series of Power Metal Oxide Film Resistors provide high power with a compact, space-saving size. Ideal for line protection applications, the ROX1S series of resistors are flame proof and can withstand overload conditions. The resistors are suitable for processing on automatic insertion equipment and cutting and b***ing machines. Features and Benefits:. Rated dissipation at 70°C: 1W Resistance tolerance: ±5% Temperature coefficient: ±300ppm/°C Limiting element voltage: 350V Overload voltage: 600V (max.) Insulation resistance: 1000MΩ Operating temperature: -55°C → +235°C Body Length: 9 mm Body Diameter: 3 mm Lead Length: 25 mm Lead Diameter: 0.7 mm
