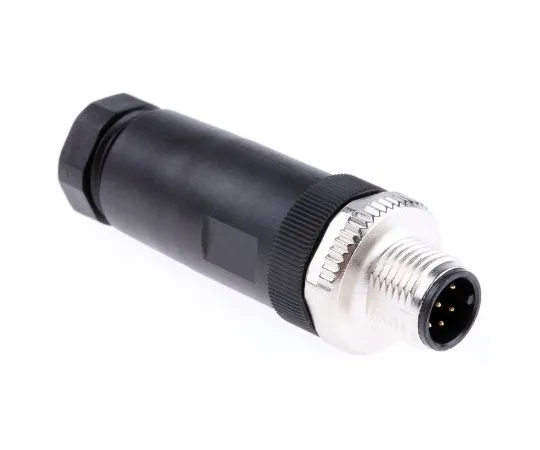

63-4988-60 Binder 713 Series M12 Cable Mount Connector, 8 contacts Plug 99-0487-12-08

model: 63-4988-60
brand: Binder

Product Description

Product Model: 63-4988-60Product Brand: Binder Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4988-60
Product Brand: Binder

Features

  • M12 male cable connector, series 713. M12 connectors are available in straight or angled versions, with an anchored cable gland to prevent strain on the cable. These light weight connectors are also available in male or female versions with screw and/or clamp termination, this allows for strong and robust connection. Features and Benefits:. The contact surfaces are 8-poles Brass, gold plated, which inhibits oxidation and tarnishing ext***ing the life expectancy. Termination is via a screw clamp ensuring a strong and stable connection, whilst the connector locking system is bolted. Cable out let is for cables ranging from 6.0mm to 8.0mm and is IP67 when mated. For the housing material of this connector is PA, Polyamide. Polyamide is ***d in some cable connectors due to its high strength and resilience, it is also abrasion resistant resulting in durability. This makes it the ideal material for connector casing. Key features:. 8 contact Male Straight version Easy assembly PA housing material Up to 100 mating cycles Weight 21.822g

Spec

  • Quantity:1piece
  • Number of Contacts : 8
  • Mounting Type : Cable Mount
  • Connector Size : M12
  • Termination Method : Screw
  • Current Rating : 2A
  • IP Rating : IP67
  • Contact G***er : Male
  • Voltage Rating : 60 V
  • Body Orientation : Straight
  • Series : 713
  • CODE No.:706-7476
