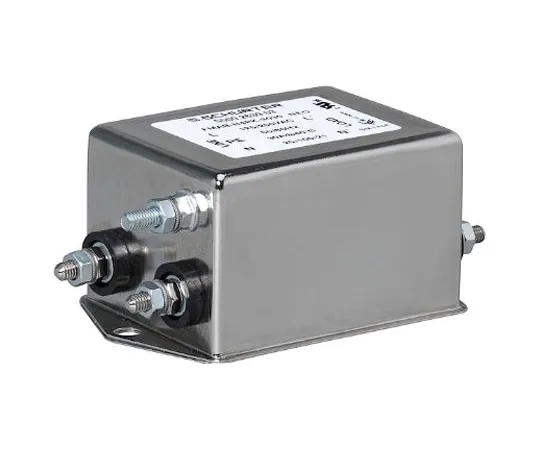

63-7013-02 Schurter FMAB NEO Series 20A 125 (UL/CSA) V ac, 250 (IEC) V ac, 250 (UL/CSA) V ac 50 (IEC) Hz, 60 (UL/CSA) Hz Flange 5500.2656.01
Product Description
Product Model: 63-7013-02Product Brand: Schurter Featur […]
Contact Us
Product Details
Product Model: 63-7013-02
Product Brand: Schurter
Features
- VDE40041643 UL E72928 Schurter FMAB NEO Series Single-Phase Filter Schurter FMAB NEO Single-Phase Filter is a compact filter with high symmetry attenuation. This power line filter is designed for general industrial ***. It is especially ideal for applications involving symmetric noise generated from switching semiconductors. FMAB NEO also complies with IEC/UL60601-1 compliant medical devices and IEC/UL60950 compliant general equipment. Operating temperature range: -25°C → +100°C.
- Features • Fully enclosed steel housing Excellent symmetrical damping, compact and cost optimized
Spec
- Quantity:1piece
- Maximum Current Rating : 20A
- Mounting Type : Flange Mount
- Termination Style : Quick Connect
- Number of Phases : 1
- Series : FMAB NEO
- Operating Frequency : 50 (IEC) Hz, 60 (UL/CSA) Hz
- Length : 85.5mm
- Depth : 54.5mm
- Height : 30.8mm
- Dimensions : 85.5 x 54.5 x 30.8mm
- Leakage Current : 0.5 mA
- Maximum Operating Temperature : +100°C
- Resistance : 1.9mΩ
- Power Loss : 1.5W
- CODE No.:127-1756
