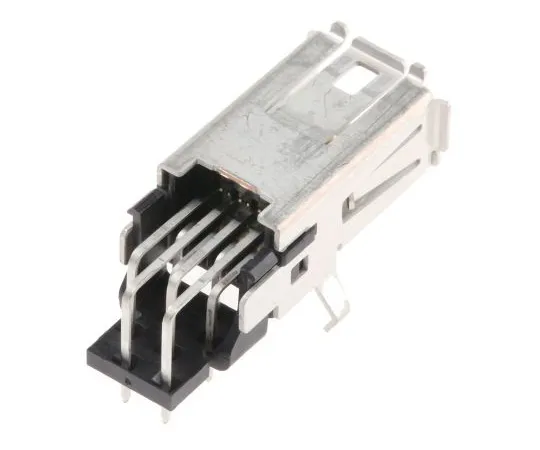

63-4987-18 TE Connectivity Through Hole Mini I/O Connector Female 1-2040537-1
model:
63-4987-18
brand:
TE Connectivity
Product Description
Product Model: 63-4987-18Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4987-18
Product Brand: TE Connectivity
Features
- TE Connectivity Industrial Mini I/O. A range of compact, latching, wire-to-board Industrial Mini I/O interface connectors from TE Connectivity. These Industrial Mini I/O connectors are a quarter of the size of RJ45. For increased reliability in industrial applications is achieved by these Industrial Mini I/O interface connectors having two points of contact. Type I Industrial Mini I/O connectors for *** of all non Ethernet based Protocols are ; 703-9660 703-9660 and ; 706-0214 706-0214. Type II Industrial Mini I/O connectors for *** of all Ethernet based Protocols are ; 706-0220 706-0220 and ; 706-0223 706-0223. ; 706-0220 706-0220 and ; 703-9660 703-9660 : Through-hole configuration DIP/H-Type ; 706-0214 706-0214 and ; 706-0223 706-0223 : SMT configuration 0.635 mm pitch pads. No. of Positions: 8 Voltage: 30 V Current: 0.5 A Durability: 1500 cycles
Spec
- Quantity:1piece
- Connector Type : Modular Jack
- G***er : Female
- Mounting Type : Through Hole
- Termination Method : Solder
- Housing Material : Thermoplastic
- Contact Material : Copper Alloy
- CODE No.:706-0220
