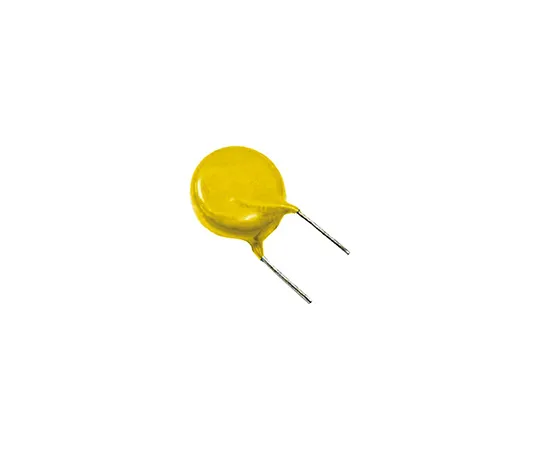

63-5037-32 Vishay Single Layer Ceramic Capacitor SLCC 4.7nF 500V ac ±20% Y5U Dielectric VY1 Series Series Through Hole VY1472M63Y5UG6TV0
Product Description
Product Model: 63-5037-32Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5037-32
Product Brand: Vishay
Features
- UL, CSA, VDE. X1/Y1 Ceramic Disc VY1 Series Halogen Free. AC Line Rated Class X1, 760 Vac, Class Y1, 500 Vac High reliability ceramic disc radial capacitor Encapsulated in flammable resistant epoxy resin in accordance with UL 94 V-0 Halogen-free according to IEC 61249-2-21
Spec
- Quantity：1bag(5pieces)
- Capacitance : 4.7nF
- Voltage : 500V ac
- Mounting Type : Through Hole
- Series : VY1 Series
- Tolerance : ±20%
- Dielectric : Y5U
- Diameter : 16mm
- Depth : 5mm
- Height : 19mm
- Dimensions : 16 (Dia.) x 5mm
- Terminal Type : Through Hole
- CODE No.:736-8952
