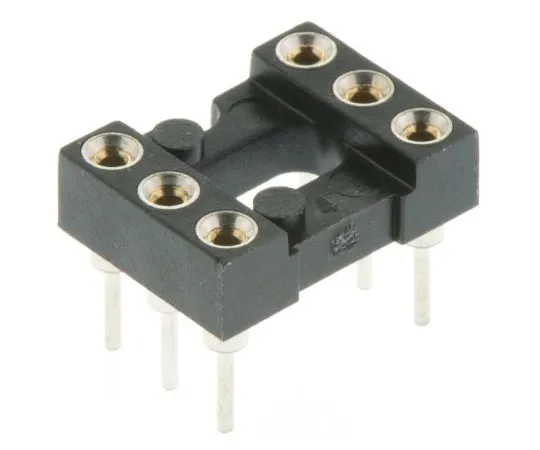

63-4983-09 Preci-Dip 2.54mm Pitch Vertical 6 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 1A 110-87-306-41-001101
Product Description
Product Model: 63-4983-09Product Brand: Preci-Dip Featu […]
Contact Us
Product Details
Product Model: 63-4983-09
Product Brand: Preci-Dip
Features
- UL 94V_0. 2.54 mm IC Sockets DIL open frame Preci-dip 110 Series. These Swiss Preci-dip Dual-In-Line 2.54mm pitch 110 Series sockets are open frame Through Hole or SMD perp***icular mounted connectors. The surface mount DIL sockets are designed for reflow soldering including vapour phase with Gull Wing terminations for maximum strength and and easy in-circuit test when mounted on PCB. Sleeves are Tin plated Brass with 4 finger Gold flash Contact Clips Stock numbers: 702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar Stock numbers: 702-2785 , 702-2798 , 702-2795 , 702-2808 , 702-2811 and 702-2818 have 2 centre bars
Spec
- Quantity：1bag(5pieces)
- Number of Contacts : 6
- Mounting Type : Through Hole
- Pin Type : Turned
- Pitch : 2.54mm
- Row Width : 7.62mm
- Frame Type : Open Frame
- Termination Method : Solder
- Contact Plating : Gold, Tin
- Current Rating : 1A
- Orientation : Vertical
- Length : 7.6mm
- Width : 10.1mm
- Depth : 2.8mm
- Dimensions : 7.6 x 10.1 x 2.8mm
- Housing Material : Glass Fibre Reinforced PET
- CODE No.:702-0657
