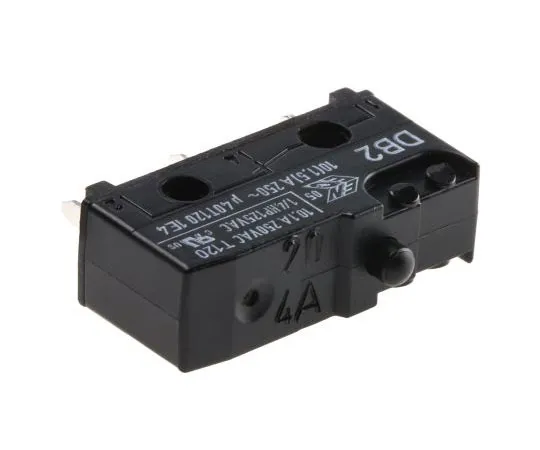

63-7470-79 SPDT-NO/NC Button Microswitch, 10.1 A @ 250 V ac DB2C-C1AA
Product Description
Product Model: 63-7470-79Product Brand: ZF Features ENE […]
Contact Us
Product Details
Product Model: 63-7470-79
Product Brand: ZF
Features
- ENEC, UL. Standard V4 Microswitches (DB2 10A). DB2 rated at 10A 250Vac; ENEC, EN61058 Maximum operating temperatures 120°C UL 94V-0 Housing material PET/PBT (UL 94V-0) Actuator material PBT (UL 94V-0) T120 POM (UL 94H-B) T85 For sealed actuator see stock no. ; 290-0491 290-0491 and for IP67 variants see stock no. ; 320-506 320-506 Height 11.65mm, Width 20mm, Depth 6.5mm
Spec
- Quantity:1piece
- Actuator Type : Button
- Terminal Type : PCB
- Contact Current Rating : 10.1 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- Operating Force : 2.45 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +120°C
- Contact Material : Gold; Silver Alloy
- Mechanical Life : 15000000Operations
- Operating Temperature Range : -40 → +120°C
- CODE No.:290-0463
