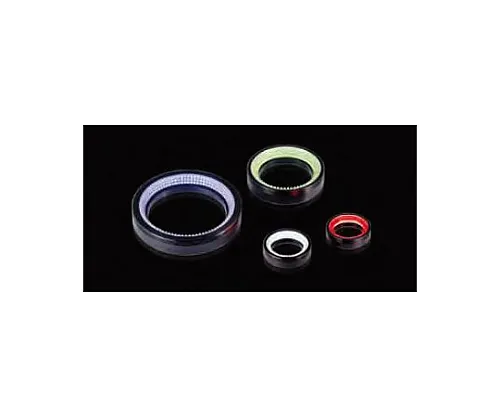

61-6986-79 Low Angle Ring Illumination SLRI-48RD2-LA
Product Description
Product Model: 61-6986-79Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6986-79
Product Brand: SIGMAKOKI CO., LTD.
Features
- The LEDs are arranged in a ring and light is directed from the low angle to the center to achieve uniform illumination without shadows.
- Illuminates the center from the low angle.
- As an option, a diff***r plate and a polarizer are available.
- SLRI-74 series (Outer Diameter φ74, Inner Diameter φ48) is available.
- The emission colors are red, white, blue, and green.
- Diff***r plate for SLRI-48 or 74 series and polarization filter for lens mounting are available.
- * Use SPS-3024, SPS-3024-3 PI, and SPSB-3024VB for power supply.
Spec
-
[
Common specification]
- Input voltage: DC24V
- Cable length: 0.3m
- Input connector: SMR-03V-B x 1 pieces
- Polarity, Signale: 1 : Anode (+) brown, 2 : Disconnected, 3 : Cathode (-) blue color
- Case material: Aluminum alloy
- Cooling method: Natural cooling
- Used temperature and humidity: Temperature: 0 - 40℃, Humidity: 20 - 85% RH (non-condensing)
- Storage temperature and humidity: Temperature: ?20 - 60℃, Humidity: 20 - 85% RH (non-condensing)
- Accessories: Instruction manual
- [Individual specification]
- Product name: Low angle ring lighting (red)
- Size: Outer diameter φ48mm Inner diameter φ22mm
- Power consumption: 24V/2.1W
