Spec

• Filtration area, cm

  ²

  : 50
• Hold-up volume, mL: 3.2
• Width, cm (inch): 3 (1.2)
• Minimum operation amount, mL: 15
• Length, cm (inch): 18.8 (7.4)
• Screen material: Polypropylene
• Device material: Polypropylene
• Material: Polyethersulfone
• Filter code: Biomax 100
• Filter brand name: Biomax
• Brand name: Pellicon
• Main application: Protein Purification;Analytical Sample Prep
• Package: Wettability, Preservation medium
• Quantity/box: 1

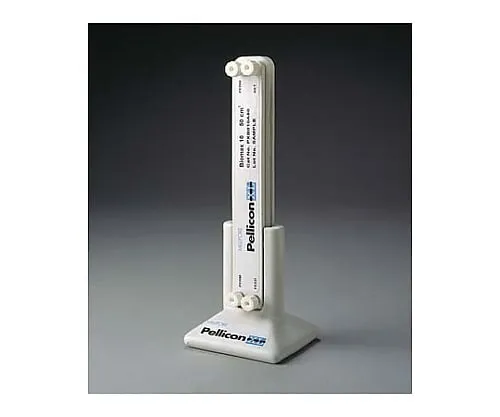

• Overview: Pellicon XL ultrafiltration module Biomax 100kDa 0.005m

  ²

• Product name: Pellicon XL device
• NMWL, kDa: 100
• pH range: 1?14
• Screen Type: C
• Filter type: Ultrafiltration
• Cycle flow rate, L/min: 0.03?0.05
• Maximum input pressure, kPa (psi): 552 (80) @ 50


  °C
• Maximum transmembrane pressure difference (normal direction), kPa (psig): 276 (40)
• Total extract: The extractables level was equal to or less than 7.5


  mg per device after a water flush.
