61-6986-62 Ring Illumination SLRI-50RD2
Product Description
Product Model: 61-6986-62Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6986-62
Product Brand: SIGMAKOKI CO., LTD.
Features

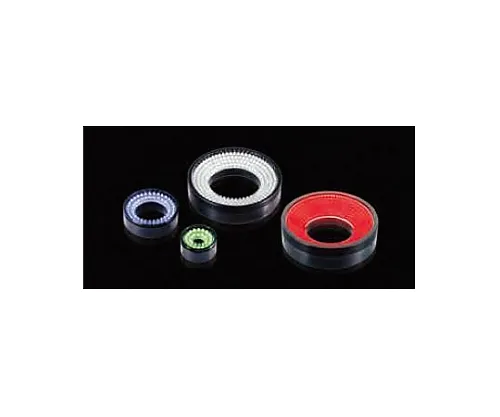

- Dense LEDs are arranged in a ring shape and light is directed toward the center to achieve uniform illumination without shadows.
- Available in SLRI-42 series (Outer Diameter φ42, Inner Diameter φ18) and SLRI-70 series (Outer Diameter φ70, Inner Diameter φ35).
- Diff***r plate and polarizer are available as an option.
- The emission colors are red, white, blue, and green.
- Diff***r plates, polarizers, and adapters for the SLRI-42, 50, and 70 series are available.
- * The polarizers for SLRI-42 and 50 require a mounting adapter.
- * Use SPS-3024, SPS-3024-3 PI, and SPSB-3024VB for power supply.
Spec
-
[
Common specification]
- Input voltage: DC24V
- Cable length: 0.3m
- Input connector: SMR-03V-B x 1 pieces
- Polarity, Signale: 1 : Anode (+) brown, 2 : Disconnected, 3 : Cathode (-) blue color
- Case material: Aluminum alloy
- Cooling method: Natural cooling
- Used temperature and humidity: Temperature: 0 - 40℃, Humidity: 20 - 85% RH (non-condensing)
- Storage temperature and humidity: Temperature: ?20 - 60℃, Humidity: 20 - 85% RH (non-condensing)
- Accessories: Instruction manual
- [Individual specification]
- Product name: Ring Lighting (red)
- Size: Outer diameter φ50mm Inner diameter φ28 mm
- Power consumption: 24V/3.1W
- CE conform product
- RoHS conform product
