Spec

• Filtration area, m

  ²

  : 0.46
• Diameter, cm (inch): 14.5 (5.7)
• Length, Inch (cm): 10 (25)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Pre-filter material: Borosilicate glass Fiber
• Vent cap material: Polypropylene
• Material: Cellulose mixed ester
• Housing: Polypropylene
• Format: Double Layer
• Brand name: Opticap
• Main application: Laboratory Filtration
• Substitute: KGW601TC1
• Package: Double easy open bag
• Form: Capsule
• Connection, Inlet/outlet: 38mm (1-1/2in.) sanitary flange
• Quantity/box: 1
• Overview: Opticap XL10 Polysep II 1.0/0.5μm 1-1/2in. TC/TC

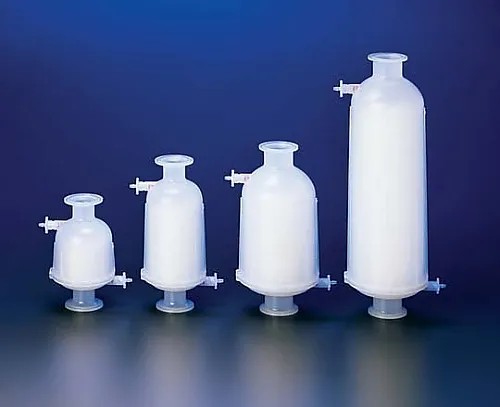

• Product name: Opticap XL capsule filter
• Maximum Inlet Pressure (psig): 80
• Maximum Inlet Temperature, °C: 25
• Nominal bore diameter, μm: 1.0 / 0.5
• Maximum input pressure, kPa (psi): 552 (80) @ 25


  °C; 276 (40) @ 60


  °C; 103 (15) @ 80


  °C
• Maximum differential pressure, kPa (psid): 345 (50) @ 25


  °C
• Sterilization: Autoclave sterilization 3 times for 30 minutes at 121℃; no in-line steam sterilization
• Sterility: No sterilization
• Total extract: The extractables level was equal to or less than 145


  mg per capsule after a 5


  L flush and 24


  hours in water at controlled room temperature.
• Potassium permanganate reduced substance: Will meet the USP Oxidizable Substances Test requirements after a water flush of ? 5L
• ※We ask for your kind understanding that lead time might change If it is out of stock in Japan.
