61-6972-79 Z Axis Flat Steel Stage (Upside Down) Size 60 x 60mm TSD-603UD
Analyzer, Testing Equipment

61-6972-79 Z Axis Flat Steel Stage (Upside Down) Size 60 x 60mm TSD-603UD

model: 61-6972-79
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6972-79Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6972-79
Product Brand: SIGMAKOKI CO., LTD.

Features

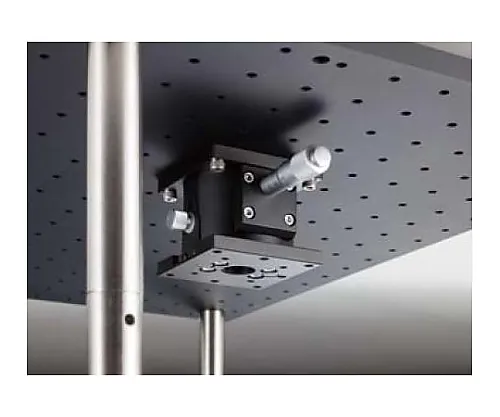

  • Z axis flat steel stage This stage supports ceiling suspension, which was not possible with the TSD series.
  • It can be ***d to build optical systems on walls and ceilings and for camera alignment, which has not been possible before.
  • Can also be ***d for horizontal placement and wall mounting.

Spec

  • Table surface size: 60 x 60mm
  • Movement amount: ±5mm
  • Movement amount/1 rotation: 0.5mm
  • Micrometer minimum reading: 0.01mm
  • Movement guide: Ball guide
  • Main material: Iron (upper, lower plate: Aluminum)
  • Surface treatment: Black matte/Black anodic oxide
  • Withstand load: 98N (10.0kgf)
  • Movement accuracy/straightness: 2.5μm
  • Movement accuracy/pitching: ?
  • Movement accuracy/yawing: ?
  • Permissible moment load/pitch: 6.9N・m
  • Permissible moment load/roll: 6.9N・m
  • Permissible moment load/yaw: ?
  • Moment rigidity/pitch: 0.41″/N・cm
  • Moment rigidity/roll: 0.41″/N・cm
  • Moment rigidity/yaw: ?
  • Parallelism: 80μm
  • Movement parallelism: 20μm
  • Mass: 1.0kg
  • RoHS conform product
