61-6960-98 Optical Laboratory Unit with Frame 1,000 x 700mm HA-107-100L
Analyzer, Testing Equipment

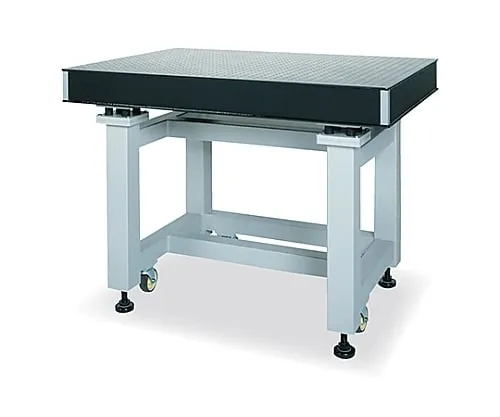

61-6960-98 Optical Laboratory Unit with Frame 1,000 x 700mm HA-107-100L

model: 61-6960-98
brand: SIGMAKOKI CO., LTD.

Product Description

Product Model: 61-6960-98Product Brand: SIGMAKOKI CO., […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 61-6960-98
Product Brand: SIGMAKOKI CO., LTD.

Features

  • It is a simple type optical laboratory table with a trestle equipped with vibration isolation rubber between the bench and the trestle, and does not emphasize the vibration isolation effect.
  • The inside of the bench has a honeycomb core shape made of aluminum and is lightweight with excellent rigidity.
  • Vibration isolation legs are rigid and stable.
  • Since the connecting pipe of the trestle leg is arranged in the knee compartment, you can experiment and measure while sitting on a chair.
  • The upper surface of the bench is a magnetized stainless steel plate with tap holes (M6 25 x 25 mm matrix) on the entire surface, so it can be built with either magnet type or screw-on type equipment or equipment.
  • Rigid specifications that do not require the anti-vibration rubber provided between the bench and the trestle can also be ***d. * Due to the weight of the item, the shipping cost will be estimated separately.

Spec

  • [

    common specification]
  • Vibration isolation method: Simple vibration isolation with rubber isolators
  • Honeycomb material inner bench: Aluminum
  • Bench material (upper plate): Magnetic Stainless Steel plate, thickness 5mm
  • Bench material (lateral surface): Black vinyl leatherette bonded to plywood
  • Bench material (lower plate): Regular steel plate (hot rolled steel plate), thickness 4.5mm
  • Bench top: M6 tapped holes on 25 x 25mm matrix over the entire surface (leaving 25mm around the edges)
  • Bench top surface finish: Unpainted (satin finish)
  • Accessories: Rubber isolators
  • [Individual specification]
  • A x B: 1,000 x 700mm
  • H: 750mm
  • T: 100mm
  • Mass: 117kg
  • RoHS conform product
