Features

• It consists of two upper and lower plates. Holders and equipment are fixed to the upper plate, and the lower plate is fixed to the plate.
• For the three steel balls embedded in the bottom plate, it is possible to reproduce the position with high precision simply by placing them in line with the holes in the top plate.

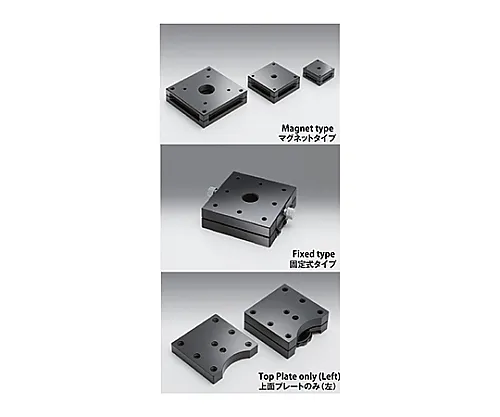

• There is a type that is joined by a strong magnet and a type that is fixed by a fixing clamp screw or a rolet.
• The magnet type of REP series (□ 25, □ 40, □ 60 mm) can be quickly replaced beca*** it is joined with strong force.
• Reproducibility of less than 100 μrad is achieved.
• Be sure to screw and secure the underboard.
• There is also a mount (FMB series) where you can directly install the mirror holder and switch the optical path.
• * REP (□ 25, □ 40, □ 60 mm) is constructed to be weak against partial load due to magnetic force retention.
• * We recomm*** that you align the center of gravity with the center of the top plate.
