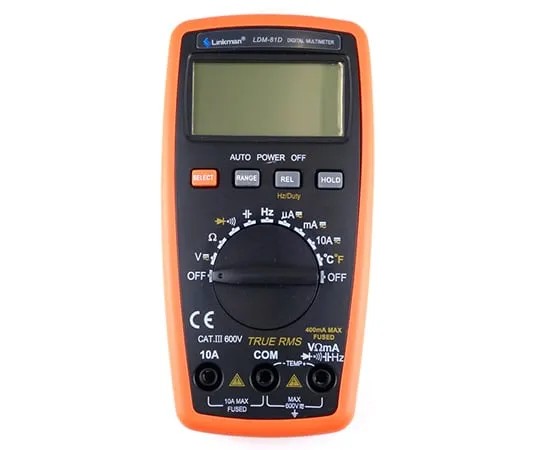

63-3102-34 Digital multimeter with 30 MHz frequency range LDM-81D
Electronic/Electrical Parts and Controll Equipments

63-3102-34 Digital multimeter with 30 MHz frequency range LDM-81D

model: 63-3102-34
brand: Linkman

Product Description

Product Model: 63-3102-34Product Brand: Linkman Feature […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-3102-34
Product Brand: Linkman

Features

  • The so-called "tester" (3999 count). It is the most basic measuring instrument for measuring voltage, current and resistance. Temperature measurement of up to 1000°C is possible, and a thermocouple is included as a sensor. Higher LDM-81B models with basic specifications can measure volume (4 nF to 100 μF range) and frequency (5 Hz to 30 MHz range) in addition to higher accuracy of up to 1999 count →3999 count.
  • This is what we call a "tester." It is the most basic measuring instrument for measuring voltage, current and resistance. This product has basic specifications but can measure temperature up to 1000°C and comes with a thermocouple as a sensor. It can measure frequencies up to the 30 MHz range. It can also be ***d to measure the 555 oscillation frequency.
  • [Measurement Range]
  • DC Voltage: 400 mV/4 V/40 V/400 V/600 V
  • AC Voltage (Average Value Display): 4 V/40 V/400 V/600 V
  • DC Current: 400 μA/4000 μA/40 mA/400 mA/10 A
  • AC Current: 400 μA/4000 μA/40 mA/400 mA/10 A
  • Resistance: 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ
  • Capacitance: 4 nF/40 nF/400 nF/4 μF/40 μF/100 μF
  • Frequency: 5 Hz/50 Hz/500 Hz/5 kHz/50 kHz/500 kHz/5 MHz/30 MHz
  • Temperature: -20~1000°C
  • Diode Test/Conductance Check [Other Specifications]
  • Sample Rate: Approx. 3 Times/sec
  • Number of Displayed: Max. 3999, Automatic Polarity Display/Unit Display
  • Operating Environment: Temperature 400 °C, Relative Humidity 80% or Less
  • Power Supply: AAA Battery x 2
  • Dimensions: 600 (D) x 40 (W) x 400 (H) mm
  • Weight: 600 g (including battery)
  • Accessories: Owner's Manual, Measurement Cord, Thermocouple Sensor Test Operation AAA Battery x 2 Parts M***um There are related articles on the blog.
