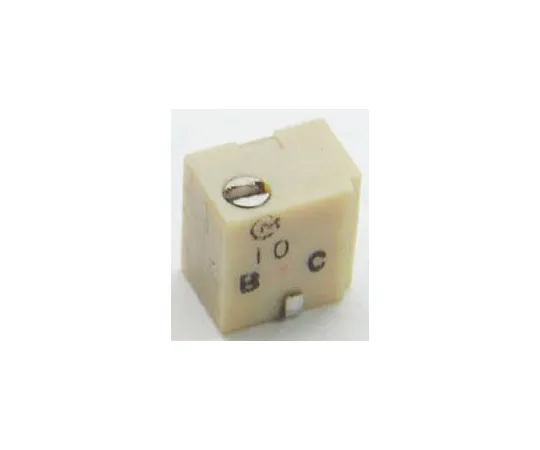

63-4934-88 1kΩ SMD Trimmer Potentiometer 0.25W Top Adjust Bourns PVG5 Series PVG5A102C03R00
Product Description
Product Model: 63-4934-88Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4934-88
Product Brand: Bourns
Features
- 11-Turn 250mW 5mm Top Adjust PVG5A Series. 11 turn high resolution trimmers permitting accurate adjustment Compatible with the VPS wave soldering standard and passing through the ultra-sounds tank Clutch mechanism prevents excessive wiper rotation Applications: sensors, industrial machines, CPU's, measuring instruments
Spec
- Quantity：1piece
- Maximum Resistance : 1kΩ
- Mounting Type : Surface Mount
- Number of Turns : 12
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : PVG5
- Termination Style : J-Hook
- Tolerance : ±10%
- Temperature Coefficient : ±150ppm/°C
- Length : 4.8mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:669-6685
