Electronic/Electrical Parts and Controll Equipments

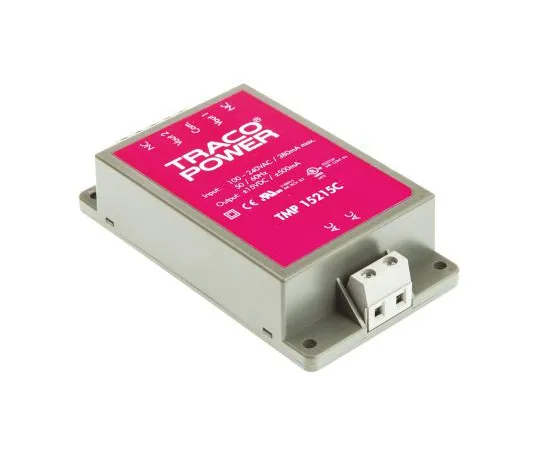

63-4924-45 TRACOPOWER 15W Dual Output Embedded Switch Mode Power Supply SMPS, 500mA, ±15V dc Encapsulated TMP 15215C
Product Description
Product Model: 63-4924-45Product Brand: TRACOPOWER Feat […]
Contact Us
Product Details
Product Model: 63-4924-45
Product Brand: TRACOPOWER
Features
- IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only). CB, UL recognised component for Canada ; US. Manufacturers part numbers with a 'C' suffix de**** chassis mounting types. Multi output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi output models have output 1 isolated from output 2/3 (floating) Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos ; 666-2786 666-2786 ; ; 666-2780 666-2780 De-rate by 3.5% per °C above 50°C. for 'TMP 10' models De-rate by 2.5% per °C above 40°C. for other models MTBF to MIL-HDBK-217F (25 °C). 3. Traco 4W to 60W Low Profile Encapsulated AC/DC Power Supply - TMP and TMPM Series. 4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment. Ultra compact and low profile design Universal 85-264Vac input Fully encapsulated offering protection against pollution and dust Short circuit, overload and over temperature protection 3kVac input / output isolation Protection Class II EM Ccompliance to EN 55022, level B, FCC Part 15 level B
Spec
- Quantity:1piece
- Output Voltage : ±15V dc
- Output Current : 500mA
- Power Rating : 15W
- Number of Outputs : 2
- Input Voltage : 120 → 370 V dc, 85 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Encapsulated
- Length : 96mm
- Width : 54mm
- Depth : 23.3mm
- Weight : 162g
- Efficiency : 79%
- Maximum Temperature : +60°C
- Minimum Temperature : -25°C
- CODE No.:664-1474
