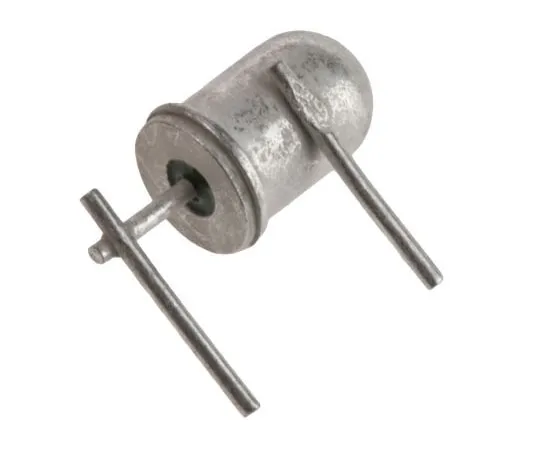

63-7439-79 15 °, 100 mA, 60V, Tilt Switch CW1600-3
Product Description
Product Model: 63-7439-79Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-7439-79
Product Brand: Assemtech
Features
- When in the horizontal position the switch contact may be open or closed. Standard & Miniature Tilt 2 Pin. Gas filled, hermetically sealed in miniature metal housings for *** in ON/OFF control applications ±7.5° from the horizontal angle The switch movement required to ca*** contact change (E.g. on/off) is called the differential angle
Spec
- Quantity:1piece
- Differential Angle : 15 °
- Mounting Orientation : Horizontal
- Maximum Current : 100 mA
- Maximum AC Voltage : 60V
- Maximum DC Voltage : 60V
- Contact Resistance : 100Ω
- Terminal Type : PCB
- Length : 8.71mm
- Minimum Operating Temperature : -37°C
- Maximum Operating Temperature : +100°C
- Dimensions : 4.27 x 8.71 mm
- CODE No.:235-7639
