Electronic/Electrical Parts and Controll Equipments

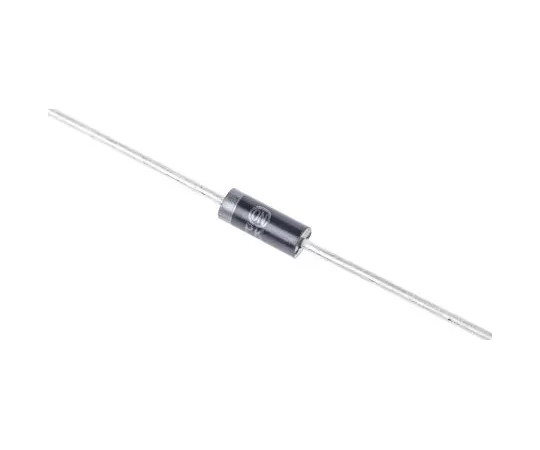

63-4917-97 ON Semiconductor, 3.9V Zener Diode 5% 5 W Through Hole 2-Pin DO-15 1N5335BRLG
model:
63-4917-97
brand:
ON Semiconductor
Product Description
Product Model: 63-4917-97Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4917-97
Product Brand: ON Semiconductor
Features
- Zener Diodes 5W Surmetic, 1N5333 to 1N5346 Series, ON Semiconductor. N Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable. Applications. Industrial
Spec
- Quantity：1bag(5pieces)
- Nominal Zener Voltage : 3.9V
- Mounting Type : Through Hole
- Maximum Power Dissipation : 5 W
- Package Type : DO-15
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 320mA
- Maximum Zener Impedance : 2Ω
- Maximum Reverse Leakage Current : 50µA
- Length : 8.89mm
- Dimensions : 8.89 x 3.68 x 3.68mm
- Width : 3.68mm
- CODE No.:654-7533
