63-4892-62 Gems Sensors Turbine Flow Sensor, 0.026 gal/min → 0.65 gal/min, FT-210 Series 212460E
Electronic/Electrical Parts and Controll Equipments

63-4892-62 Gems Sensors Turbine Flow Sensor, 0.026 gal/min → 0.65 gal/min, FT-210 Series 212460E

model: 63-4892-62
brand: Gems Sensors

Product Description

Product Model: 63-4892-62Product Brand: Gems Sensors Fe […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4892-62
Product Brand: Gems Sensors

Features

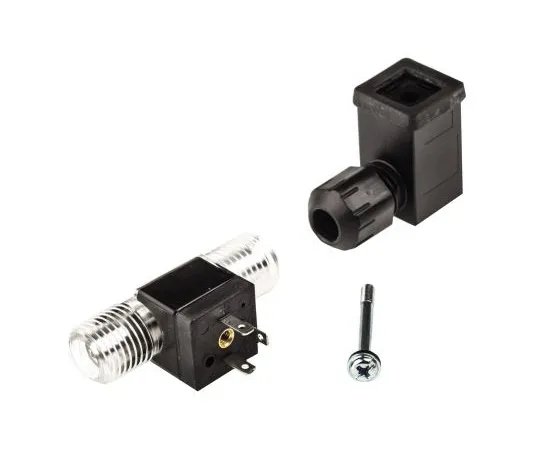

  • CE. FT-210 Series Turbine Flow Sensor. Gem's™ FT-210 features proven turbine technology in a small package for low flow applications. The turbine technology provides a highly repeatable sensor ideally suited for measurement of either volume dispensing and/or flow rate applications. The small turbine reacts quickly to on/off dispensing applications. Each sensor is 100% tested, ensuring years of service life. Features and Benefits. Low flow rates 0.1 LPM to 2.5 LPM. Accuracy ±3% of reading. Lightweight turbine ensures fast startup. Mounts in any orientation. Mounting connector supplied

Spec

  • Quantity:1piece
  • Media Monitored : Liquid
  • Device Type : Turbine
  • Minimum Flow Rate : 0.026 gal/min
  • Maximum Flow Rate : 0.65 gal/min
  • Supply Voltage : 5 → 24 V dc
  • Pipe Diameter Range : 1/4 in
  • Connection Type : 1/4 BSP Male
  • Maximum Pressure : 24bar
  • Material : Nylon 12
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +100°C
  • Series : FT-210
  • CODE No.:616-2693
