Electronic/Electrical Parts and Controll Equipments

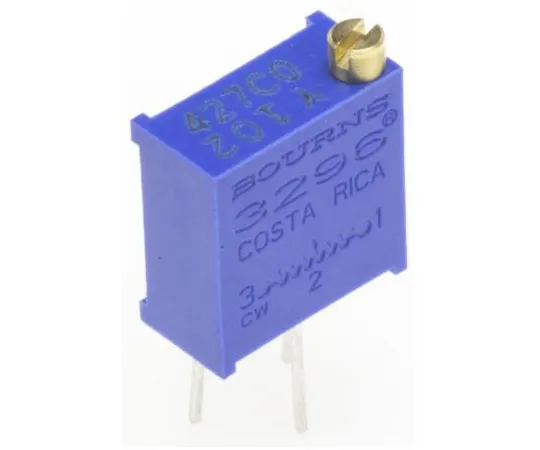

63-4850-74 1kΩ Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns 3296 Series 3296Y-1-102LF
Product Description
Product Model: 63-4850-74Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4850-74
Product Brand: Bourns
Features
- 3296 Square Trimpot. Top and side adjustable multi-turn cermet trimming linear potentiometers, 9.53 mm Narrow ho*** - high packing density Sealed to clear soaking and cleaning of the printed circuit board Moulded body with built-in feet Large screw slot for easier adjustment The contact arm is unloaded in the *** positions Fits 2.54mm module distance
Spec
- Quantity：1piece
- Maximum Resistance : 1kΩ
- Mounting Type : Through Hole
- Number of Turns : 25
- Orientation : Top Adjust
- Power Rating : 0.5W
- Series : 3296
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Length : 9.53mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:522-0063
