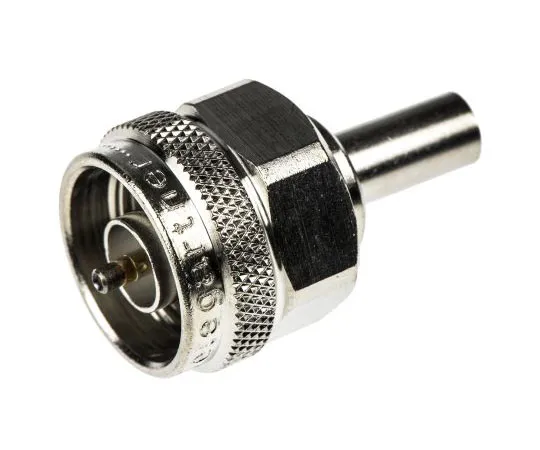

63-7407-03 Telegartner 50Ω Straight Cable Mount N Type Connector, Plug, Crimp Termination, 0 → 11GHz, RG58 C/U J01020A0108
Product Description
Product Model: 63-7407-03Product Brand: Telegartner Fea […]
Contact Us
Product Details
Product Model: 63-7407-03
Product Brand: Telegartner
Features
- Telegärtner 50 Ohm N Series RF Coaxial Crimp Plug Connectors. 50 Ohm N Series weatherproof RF coaxial crimp plug connectors with a screw coupling, crimp termination, nickel plated body and silver plated centre contact. These 50 Ohm N Series RF coax crimp cable plugs have a mating face sealing between the plug and jack according to IP68 and are available for *** with a variety of RF coaxial cable types including RG58, RG213, RG214 and RG223.
Spec
- Quantity:1piece
- G***er : Male
- Cable Type : RG58 C/U
- Mounting Type : Cable Mount
- Termination Method : Crimp
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : 0 → 11GHz
- Minimum Operating Temperature : -65 °C
- Body Plating : Copper Nickel Alloy, White Bronze
- Contact Plating : Silver Alloy
- Contact Material : Beryllium Copper, Bronze, Copper Nickel Lead Alloy
- CODE No.:177-1652
