Electronic/Electrical Parts and Controll Equipments

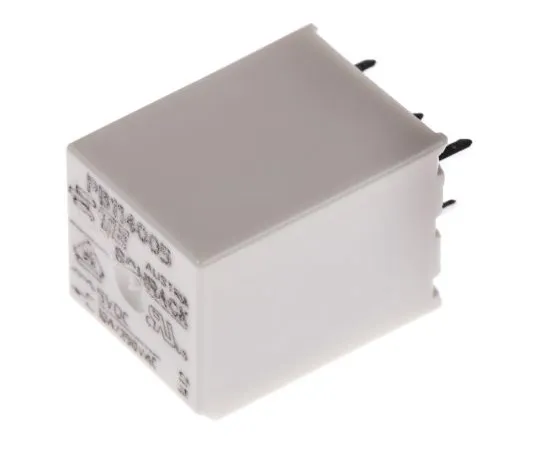

63-4841-21 TE ConnectivityPB SPDT Non-Latching Relay PCB Mount, 5V dc Coil, 10A PB114005
model:
63-4841-21
brand:
TE Connectivity
Product Description
Product Model: 63-4841-21Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4841-21
Product Brand: TE Connectivity
Features
- VDE. TE Connectivity Miniature Power PCB Relay - PCB Series. PB series miniature power PCB through hole mount relays with nickel silver 90/10 cadmium free contacts and a standard class F coil system. These 10A PCB series miniature power PCB relays have a compact and simple design that offers high process security and have resistance to heat and fire according to EN60335, par. 30. Typical applications for these PB series power relays include white goods, small home appliances and heating and temperature controllers. Compact design PCB power relay Coil power: 360mW Rated switching voltage: 240Vac Clearance/creepage: ≥0.75mm Isolation coil to contact: 2500V Temperature range: –40 to 85°C Dimensions: W15mm, D15mm, H20mm
Spec
- Quantity:1piece
- Coil Voltage : 5V dc
- Coil Power : 357mW
- Coil Resistance : 70 Ω
- Isolation Coil To Contact : 2.5kV rms
- Contact Configuration : SPDT
- Mounting Type : PCB Mount
- Switching Current : 10A
- Terminal Type : Through Hole
- Maximum Switching Voltage AC : 400V
- Depth : 15mm
- CODE No.:511-2142
