Spec

• Filtration area, m

  ²

  : 1.3
• Filter bore diameter, μm: 0.2
• Diameter, cm (inch): 6.9 (2.7)
• Length, Inch (cm): 20 (50)
• Support material: Polypropylene
• Seal material: Silicone
• Device material: Polypropylene
• Material: Hydrophobicity PTFE
• Code: Code 7
• Filter brand name: Aervent
• Brand name: Aervent
• Package: Double easy open bag
• Form: Cartridge
• Quantity/box: 1

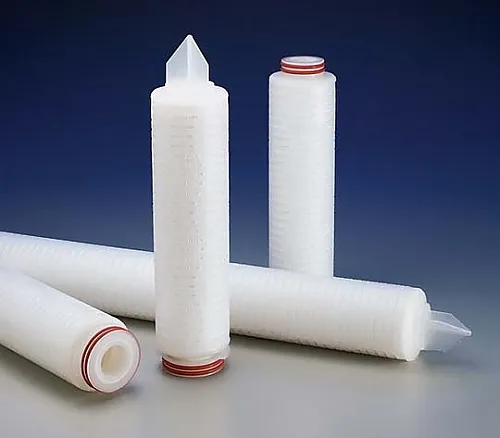

• Overview: Aervent CTGR cartridge filter 20 in. 0.2μm code 7
• Product name: Aervent cartridge filter
• Air diffusion flow rate, 23 °C:


  48mL/min @ 96.5kPa (14 psig) in 70//30% IPA/water
• Cartridge code: Code 7 (2-226) with O-ring/locking tab spear
• Hydro-Core test: At 260kPa (38 psig)


  1.5mL/minute
• Bubble point, 23 °C:


  110kPa (16psig) 70/30% IPA/water
• Maximum input pressure, kPa (psi): Forward direction - 5.5 (80) at 25℃; 1.7 (25) at 80℃; backward direction - 4.1 (60), intermittent
• Maximum differential pressure, kPa (psid): Forward direction - 552 (80) at 25℃; 172 (25) at 80℃; backward direction - 414 (60), intermittent
• Wettability: Hydrophobicity
• Sterilization: SIP of 145℃ for 30 minutes, 150 times (forward 100/reverse 50)
• Nitrogen diffusion flow rate, 23 °C:


  48mL/min @ 96.5kPa (14 psig) in 70//30% IPA/water
• Total extract: The extractables level was equal to or less than 35


  mg per 10-inch cartridge after 24


  hours in a 70/30%


  IPA/water mixture at controlled room temperature.
