61-6993-45 Sliding Type Cylindrical Lens Holder A: 30mm B: 25mm CHA-25
Product Description
Product Model: 61-6993-45Product Brand: SIGMAKOKI CO., […]
Contact Us
Product Details
Product Model: 61-6993-45
Product Brand: SIGMAKOKI CO., LTD.
Features

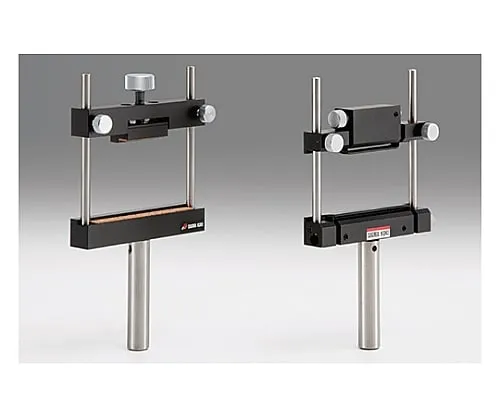

- Holders for fixing rectangular lenses (cylindrical lenses).
- Since it is a sliding type, you can easily fix a square lens of any size.
- The normal type has a cork sheet attached to the upper and lower parts where the lens is sandwiched, so the lens is hard to slip.
- With the flexible type, the lens thickness direction is sandwiched between the upper and lower fixed lens frames and the lens frame, so it can be fixed even with a thick lens, and there is no need to worry about the lens falling off.
- * In the case of the normal type, the lens will not be fixed even if you turn the lens clamp while the slide clamp is not firmly fixed.
- * For the normal type, if you tighten the lens clamp, the lens may fall off.
- * When ***d with a circular lens, the lens cannot be firmly fixed.
Spec
-
[
common specification]
- Major material: Aluminum
- Surface treatment: Black anodic oxide
- [Individual specification]
- Compatible optics thickness: <6.5mm
- Compatible optics size MAX A: 30mm
- Compatible optics size MAX B: 25mm
- C: 40mm
- D: 45mm
- E: 12mm
- φF: φ12mm
- G: 9mm
- Mass: 0.1kg
- RoHS conform product
