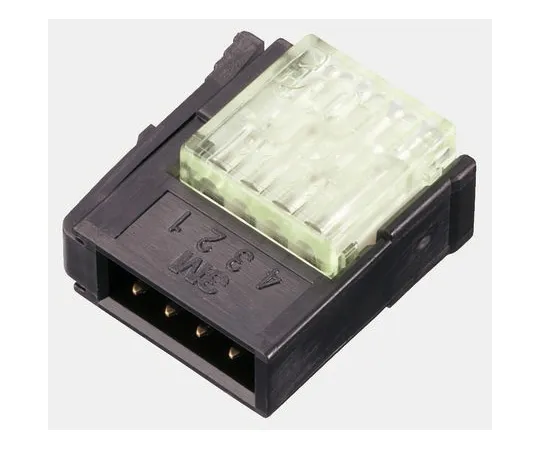

63-4792-69 Ribbon Cable Connector Male 4 Poles 37104-3122-000FL
Electronic/Electrical Parts and Controll Equipments

63-4792-69 Ribbon Cable Connector Male 4 Poles 37104-3122-000FL

model: 63-4792-69
brand: 3M Company

Product Description

Product Model: 63-4792-69Product Brand: 3M Company Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4792-69
Product Brand: 3M Company

Features

  • Product number; 827-3616 827-3616 and; The 827-3619 827-3619 is designed for wires supplied from Japan and Asia.
  • 3M 371 Series Mini Clamp II 2 mm Cable Mounted IDC Plug The 371 Series Mini Clamp II 2 mm Cable Mounted IDC Plug Connector is designed for easy, fast, and reliable termination of IDC wires. There is no need to prepare special wires or tools.
  • This 2 mm mini-clamp II wire-mount IDC connector has a compact space-saving design with built-in cable retention and latches for secure connection.
  • This mini-clamp II IDC cable mount connector supports a wide range of wire sizes (diameters) and is color-coded for easy identification of wire sizes.
  • This mini-clamp II wire-mount IDC plug is designed to provide reliable and cost-effective connections for I/O applications found in a variety of sensor control systems, including factory automation and industrial control.

Spec

  • Number of pieces: 1
  • Number of contacts: 4
  • Male and female: male
  • Mounting Type: Cable Mount
  • Body orientation: straight
  • Terminal method: IDT
  • Current rating: 3A
  • Contact Plating: Gold on Nickel
  • Operating temperature Min: -20 degrees C
  • Operating temperature mAx: + 60 C
  • Rated voltage: 32 V
  • Housing Material: Thermoplastic
  • RoHS compliance status: Compliance
  • Securities Code: 431 0878
