63-7042-83 10mΩ 0805 Metal Foil Surface Mount Fixed Resistor ±1% 1W - KRL2012E-C-R010-F KRL2012E-C-R010-F
Product Description
Product Model: 63-7042-83Product Brand: Susumu Co Featu […]
Contact Us
Product Details
Product Model: 63-7042-83
Product Brand: Susumu Co
Features

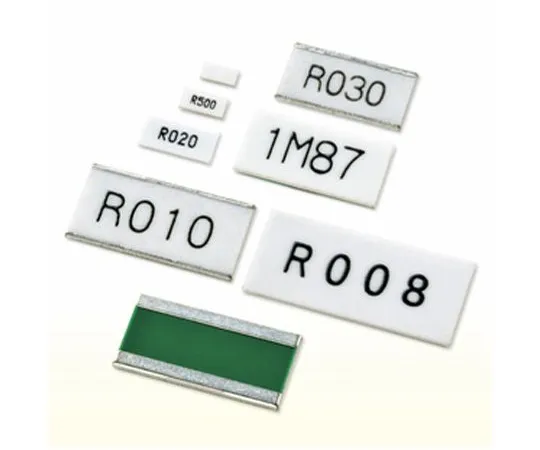

- Susumu KLR Series 0805 Current Detector Resistors The Susumu 0805 KLR series high-precision detector resistors feature high current processing capability and a wide range of power settings. This surface mount type fixed resistor is a low resistance high current detection long side terminal. It has a downward structure. You can select a bottom-only terminal or a wraparound terminal.
- Application: On-board electronic component power supply AC-DC converter DC-DC converter OA equipment motor inverter
Spec
- Quantity:1bag(20pieces)
- Resistance : 10mΩ
- Technology : Metal Foil
- Package/Case : 0805 (2012M)
- Tolerance : ±1%
- Power Rating : 1W
- Temperature Coefficient : ±50ppm/°C
- Series : KRL
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +175°C
- CODE No.:134-6354
