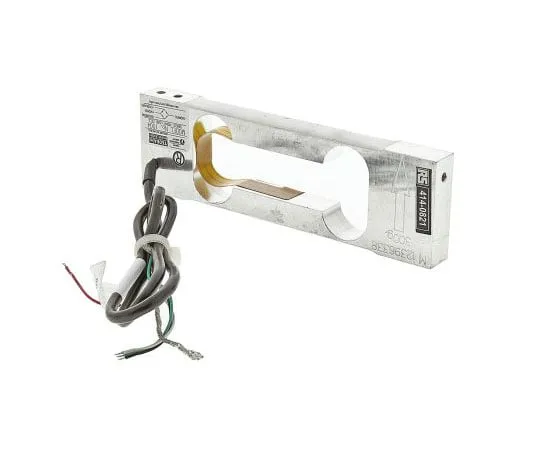

63-4787-92 Tedea Huntleigh Compression Load Cell 0.3kg, 15V dc, IP66 1004-00.3-JW00-RS
model:
63-4787-92
brand:
Tedea Huntleigh
Product Description
Product Model: 63-4787-92Product Brand: Tedea Huntleigh […]
Contact Us
Product Details
Product Model: 63-4787-92
Product Brand: Tedea Huntleigh
Features
- Low Capacity Single Point Aluminium. Output imp***ence 350Ω Safe overload 150% rated capacity Ultimate overload 250% rated capacity Cable type 4 Wire; 28 AWG; Spiral Shield; PVC Jacket. Low capacity, high precision, aluminium, single point load cell. A special humidity-resistant protective coating ensures long-term reliability. 200 x 200mm maximum platform size Up to 30 000 weighing increments Dimensions 110x33x10mm. Applications: Include Low level force measurement, postal, counting or jewellery scales, analytical balances.
Spec
- Quantity：1piece
- Force Measured : Compression
- Force/ Load Measurement Range : 0.3kg
- Maximum Excitation Voltage : 15V dc
- Output At Rated Load : 0.9mV/V
- Housing Material : Aluminium
- IP Rating : IP66
- Terminal Type : Wire Lead
- Overall Height : 33mm
- Overall Width : 110mm
- Overall Depth : 10mm
- Minimum Operating Temperature : +5°C
- Maximum Operating Temperature : +40°C
- Sensor Type : Single Point
- CODE No.:414-0821
