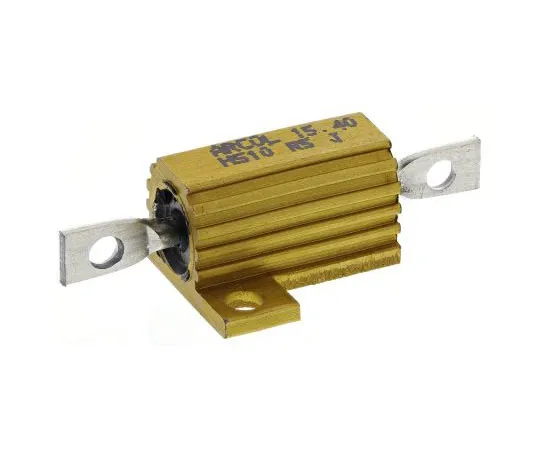

63-7349-07 Arcol HS10 Series Aluminium Ho***d Axial Wire Wound Panel Mount Resistor, 500mΩ ±5% 10W HS10 R5 J
Product Description
Product Model: 63-7349-07Product Brand: Arcol Features […]
Contact Us
Product Details
Product Model: 63-7349-07
Product Brand: Arcol
Features
- To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound. 10W Aluminium ho***d wirewound power resistor, HS Series. 10Watt Aluminium ho***d power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant. Compact size for Power rating Winding construction maximises High Pulse Capability
Spec
- Quantity:1bag(100pieces)
- Resistance : 500mΩ
- Power Rating : 10W
- Series : HS10
- Package/Case : Aluminium Ho***d
- Tolerance : ±5%
- Technology : Wire Wound
- Termination Style : Axial
- Minimum Temperature Coefficient : -100ppm/°C
- Maximum Temperature Coefficient : +100ppm/°C
- Temperature Coefficient : ±100ppm/°C
- Overall Length : 30mm
- CODE No.:166-4107
