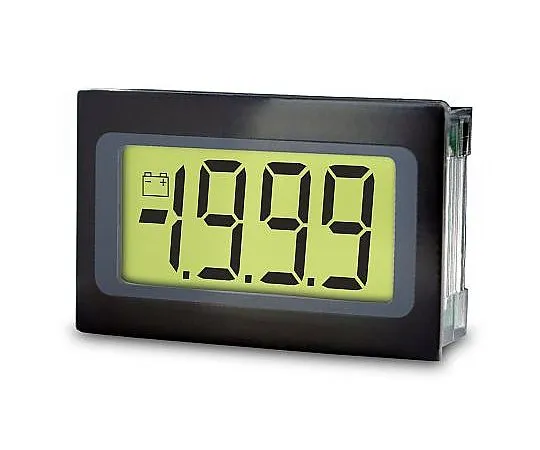

63-4784-35 Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 34 x 21.3 mm SP 200
Product Description
Product Model: 63-4784-35Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-4784-35
Product Brand: Lascar
Features
- rubber sealing gasket. 9.5mm 3.5 Digit Voltmeter Module – 12 Pin. Single (5Vdc) supply operation Front or rear panel mounting Ultra-low profile Auto-zero, auto polarity Programmable decimal points LED backlight: 40mA Input leakage current: 10pA Low battery warning Re-usable ratchet fixing clip Dimensions: 22.4 x 35.1 x 18.91mm; panel cut-out: 34 x 21.3mm
Spec
- Quantity：1piece
- Current Type : DC
- Number of Digits : 3.5
- Display Type : LCD
- Cutout Height : 21.3mm
- Cutout Width : 34mm
- Depth : 16mm
- Meter Accuracy : ±1 %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Maximum Temperature : +50°C
- CODE No.:399-0209
