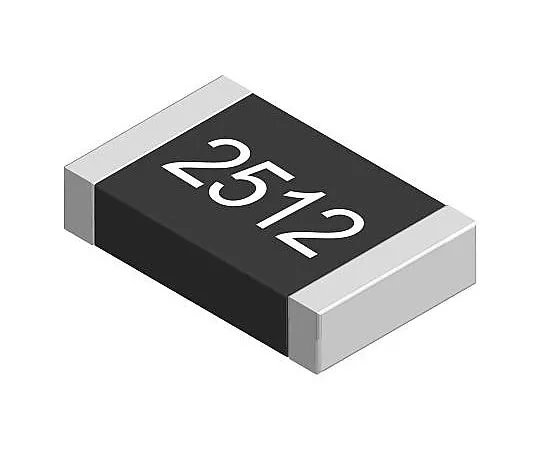

63-4971-95 80mΩ 2512 Metal Strip High Power Surface Mount Resistor ±1% 3W - CRA2512-FZ-R080ELF CRA2512-FZ-R080ELF
Product Description
Product Model: 63-4971-95Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4971-95
Product Brand: Bourns
Features
- AEC-Q200 qualified. CRA Series 2512 Format - Current Sense. Special alloy resistor Power rating at 70°C is 3 Watt Inductance less than 5 nH. Product Application Information. These current sense resistors are AEC-Q200 qualified and suitable for automotive applications.
Spec
- Quantity：1bag(5pieces)
- Resistance : 80mΩ
- Technology : Metal Strip
- Package/Case : 2512 (6432M)
- Tolerance : ±1%
- Power Rating : 3W
- Temperature Coefficient : ±75ppm/°C
- Automotive Standard : AEC-Q200
- Series : CRA
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +170°C
- CODE No.:693-4390
